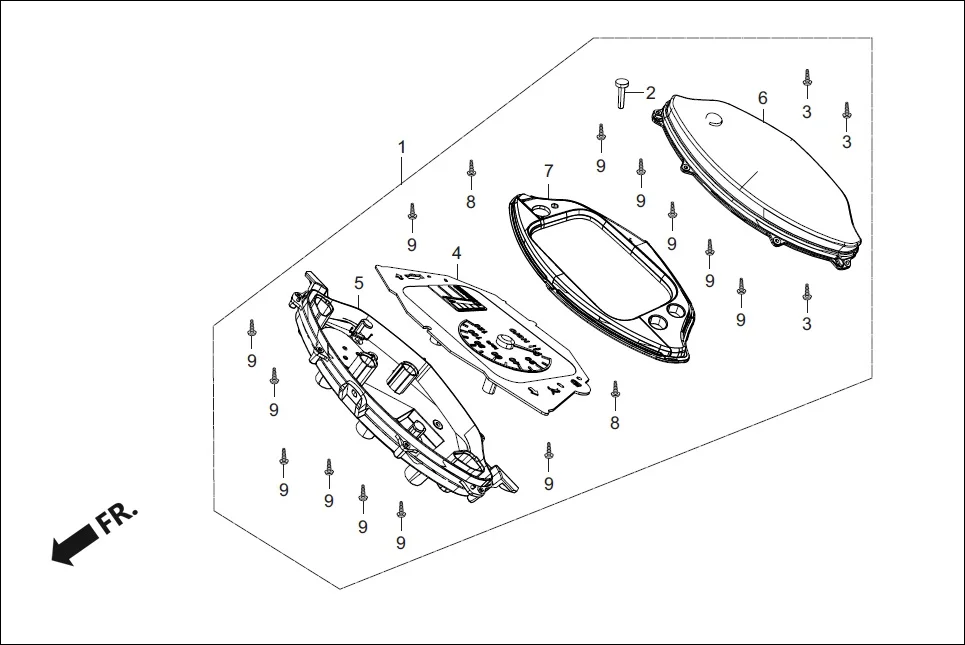

F-2 - HANDLE COVER (SPEEDOMETER ASSY.)
Hero Destini 125 (Oct, 2018) · 8 parts
Parts in This Assembly (8)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 37200-ABS-001 | SPEEDOMETER ASSY | 1 | |
| 2 | 37203-AAY-301 | KEY TOP | 1 | |
| 3 | 93903-35380 | SCREW TAPPING 5X16 | 3 | |
| 5 | 37212-AAY-001 | CASE UNDER ASSY | 1 | |
| 6 | 37213-AAY-001 | GLASS ASSY | 1 | |
| 7 | 37302-AAY-301 | REFLECTOR ASSY | 1 | |
| 8 | 90035-GW3-980 | SCREW, WASH , SPL.4X10 | 2 | |
| 9 | 93903-22480 | SCREW TAPPING 3 X 16 | 13 | |
