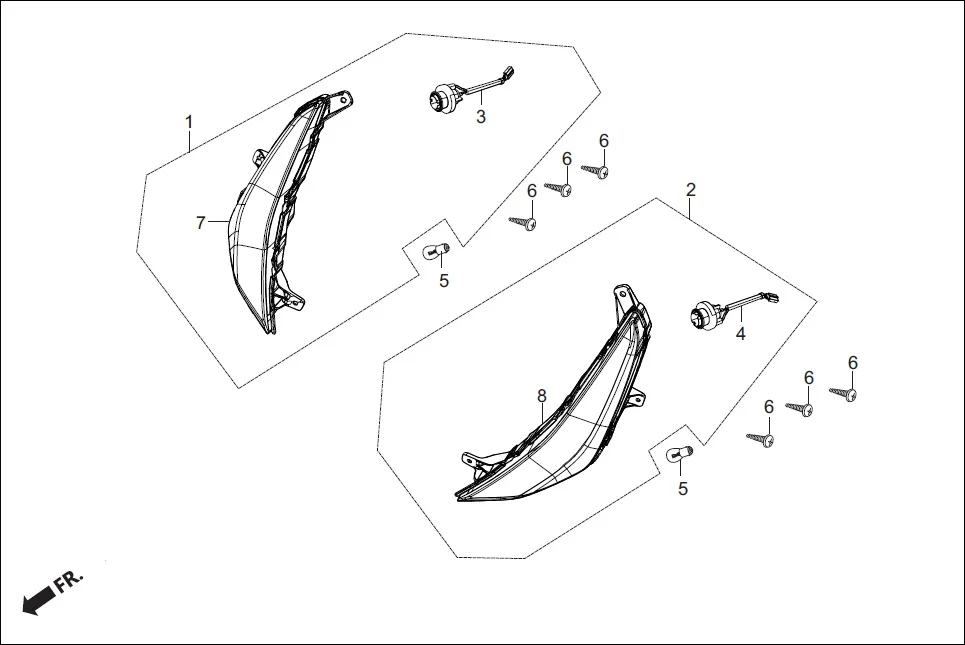

F-19 - FR.WINKER / FR.REFLECTOR
Hero Destini 125 (Oct, 2018) · 8 parts
Parts in This Assembly (8)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 3340B-ABS-001 | WINKER ASSY R FR (W/O BULB) | 1 | |
| 2 | 3345B-ABS-001 | WINKER ASSY L FR (W/O BULB) | 1 | |
| 3 | 33415-ABS-001 | SOCKET COMP R WINKER | 1 | |
| 4 | 33465-ABS-001 | SOCKET COMP L WINKER. | 1 | |
| 5 | 34930-AAC-700 | BULB(12V 10W) AMBER | 2 | |
| 6 | 93903-34480 | SCREW, TAPPING, 4X 16 | 6 | |
| 7 | 33410-ABS-001 | WINKER COMP. R | 1 | |
| 8 | 33460-ABS-001 | WINKER COMP. L | 1 | |
