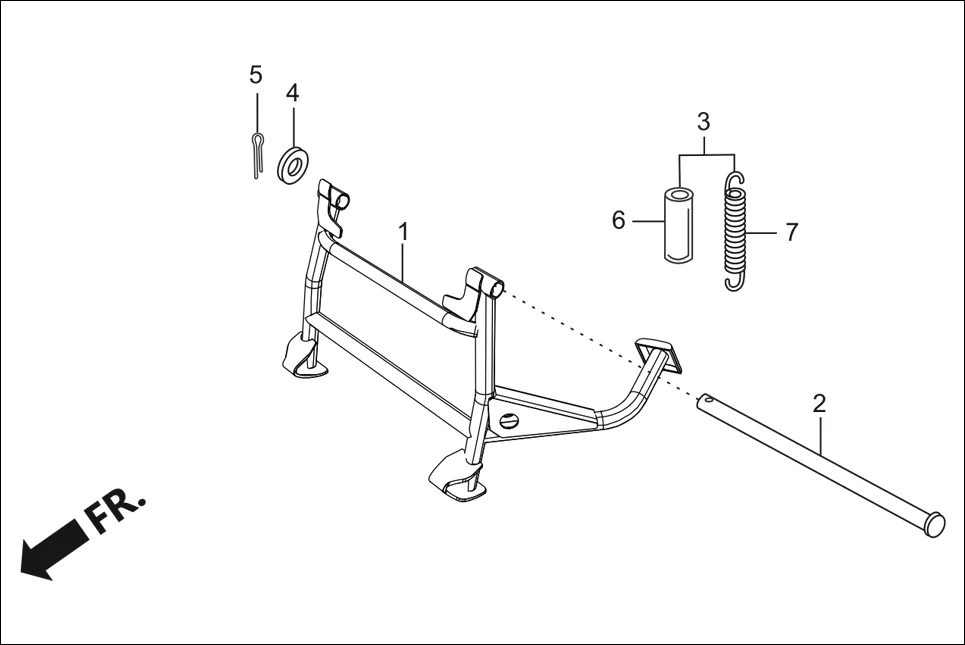

F-17A - CHAIN CASE & STAND
Hero Destini 125 (Oct, 2018) · 7 parts
Parts in This Assembly (7)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 50500-ABG-000 | STAND COMP. MAIN ASSY | 1 | |
| 2 | 50503-GCC-000 | SHAFT, MAIN STAND | 1 | |
| 3 | 50505-GCC-000 | SPG.ASSY., MAIN STAND | 1 | |
| 4 | 94102-12000 | WASHER, PLAIN, 12MM | 1 | |
| 5 | 94201-25250 | PIN, SPLIT, 2.5X25 | 1 | |
| 6 | 95005-14070-30 | TUBE, 14X70 | 1 | |
| 7 | 95014-71202 | SPRING B., MAIN STAND | 1 | |
