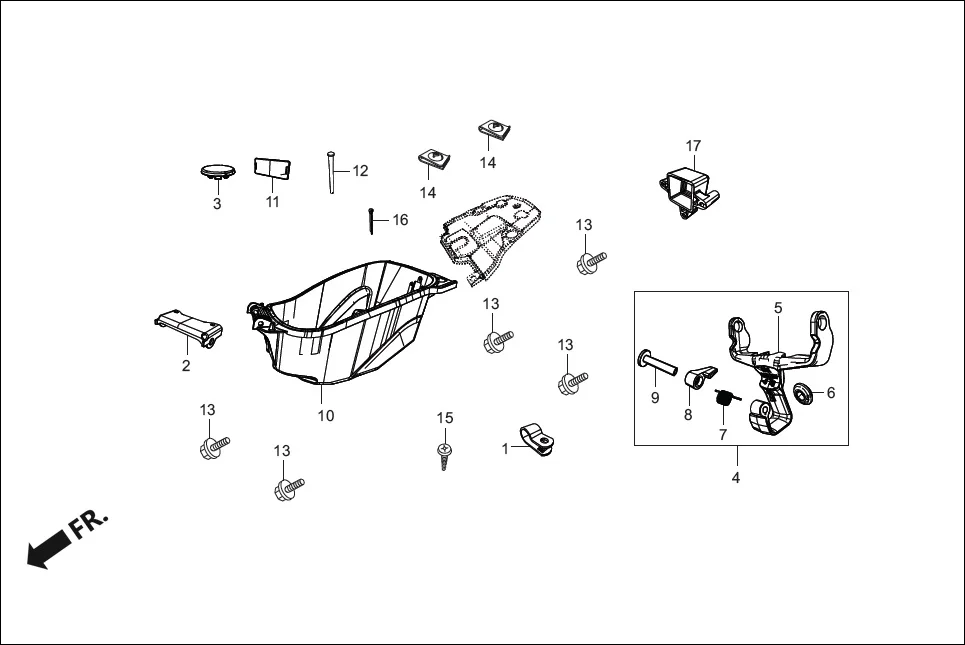

F-12A - REAR TRUNK/ REAR BAG
Hero Destini 125 (Oct, 2018) · 15 parts
Parts in This Assembly (15)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 37216-AAW-001 | CLAMP | 1 | |
| 2 | 77201-AAW-000 | PLATE HINGE | 1 | |
| 3 | 81133-AAW-500 | CAP CHOKE CABLE | 1 | |
| 4 | 81139-AAY-000 | LOCK SEAT HOOK ASSY | 1 | |
| 5 | 81142-AAY-000 | SEAT HOOK | 1 | |
| 6 | 81143-AAY-000 | GROMMET SEAT HOOK | 1 | |
| 7 | 81144-AAY-000 | SPRING SEAT HOOK | 1 | |
| 8 | 81145-AAY-000 | LOCK SEAT HOOK | 1 | |
| 9 | 81146-AAY-000 | PIN SEAT HOOK | 1 | |
| 10 | 81250-AAW-000 | BOX LUGGAGE | 1 | |
| 11 | 81252-AAW-500 | COVER FRAME NO. | 1 | |
| 12 | 90105-AAW-000 | PIN HINGE | 1 | |
| 15 | 93903-24420 | SCREW,TAPPING,4 X 16 | 1 | |
| 16 | 94201-25250 | PIN, SPLIT, 2.5X25 | 1 | |
| 17 | 81255-AAW-010 | CAP BOOT LIGHT | 1 | |
