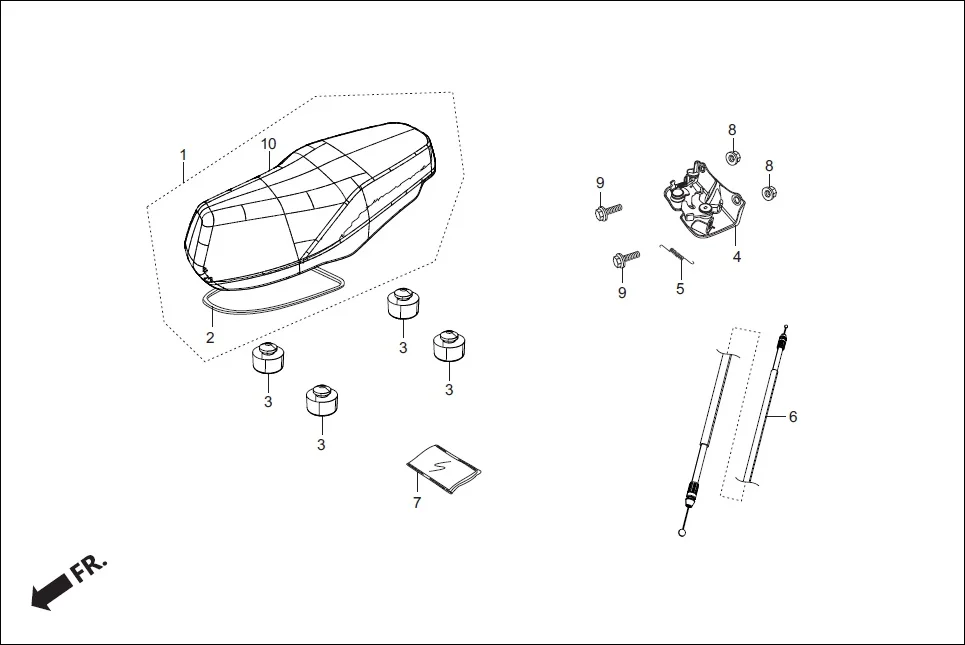

F-12-LX - SEAT
Hero Destini 125 (Oct, 2018) · 8 parts
Parts in This Assembly (8)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 77200-ABS-010 | SEAT COMP DOUBLE (LX) | 1 | |
| 2 | 77115-AAW-000 | RUBBER, SEAL | 1 | |
| 3 | 77206-KG8-900 | RUBBER, SEAT SETTING | 4 | |
| 4 | 77236-AAW-000 | SEAT CATCH COMP. | 1 | |
| 5 | 77236-GBL-000 | SPRING SEAT CATCH | 1 | |
| 6 | 77243-AAW-30099 | CABLE SEAT LOCK | 1 | |
| 7 | 77251-KPL-900 | BAG, SERVICE BOOK | 1 | |
| 10 | 7720A-AAY-000 | COVER ASSY. SEAT | 1 | |
