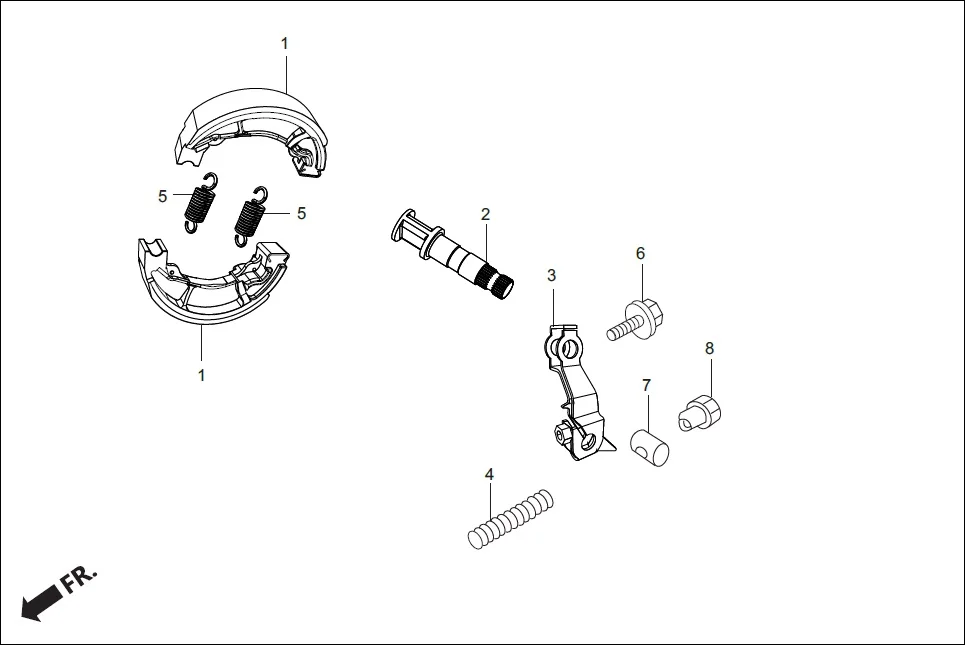

F-11B - REAR BRAKE
Hero Destini 125 (Oct, 2018) · 6 parts
Parts in This Assembly (6)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 2 | 43141-KTP-900 | CAM, REAR BRAKE | 1 | |
| 3 | 43410-AAW-000 | ARM REAR BRAKE | 1 | |
| 4 | 43472-KPL-900 | SPRING, REAR, BRAKE ARM | 1 | |
| 6 | 90112-KTP-900 | BOLT, FLANGE, 6X32 | 1 | |
| 7 | 95015-32001 | JOINT B BRAKE ARM | 1 | |
| 8 | 95015-42000 | NUT B ADJUST | 1 | |
