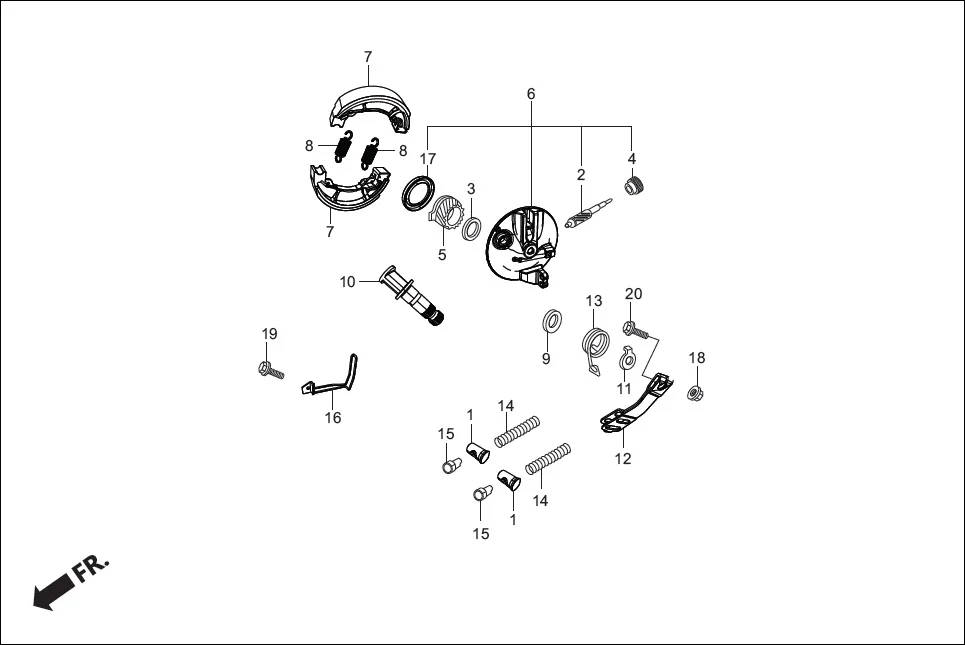

F-10B - FRONT BRAKE
Hero Destini 125 (Oct, 2018) · 19 parts
Parts in This Assembly (19)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 43455-AAL-100 | JOINT BRAKE ARM | 2 | |
| 2 | 44805-KTP-900 | PINION, SPDMT | 1 | |
| 3 | 44809-170-000 | WASHER, SPEEDOMETER GEAR | 1 | |
| 4 | 44810-KTC-900 | BUSH, PINION | 1 | |
| 5 | 44811-KPL-900 | GEAR, SPDMT | 1 | |
| 6 | 45010-AAY-000 | PANEL SUB COMP FR BRAKE | 1 | |
| 7 | 45125-AAH-F0099 | SHOE COMP BRAKE | 2 | |
| 8 | 45133-KCC-900 | SPRING, FR. BRAKE SHOE | 2 | |
| 9 | 45134-250-000 | DUST SEAL, BRAKE CAM | 1 | |
| 10 | 45141-AAW-000 | CAM FRONT BRAKE | 1 | |
| 11 | 45145-AAW-000 | INDICATOR FRONT BRAKE | 1 | |
| 12 | 45410-AAY-000 | ARM FR BRAKE | 1 | |
| 13 | 45435-GB2-720 | SPRING, BRAKE ARM RETURN | 1 | |
| 14 | 45456-AAW-000 | SPRING BRK CABLE END | 2 | |
| 15 | 45459-AAW-000 | NUT, BRAKE ADJUSTING | 2 | |
| 16 | 51502-AAY-000 | BRKT CABLE GUIDE BRAKE PANEL | 1 | |
| 17 | 91253-KPL-900 | DUST SEAL , 41 X60 X7 | 1 | |
| 19 | 95701-06010-00 | BOLT, FLANGE, 6 X 10 | 1 | |
| 20 | 95701-06032-00 | BOLT, FLANGE, 6 X 32 | 1 | |
