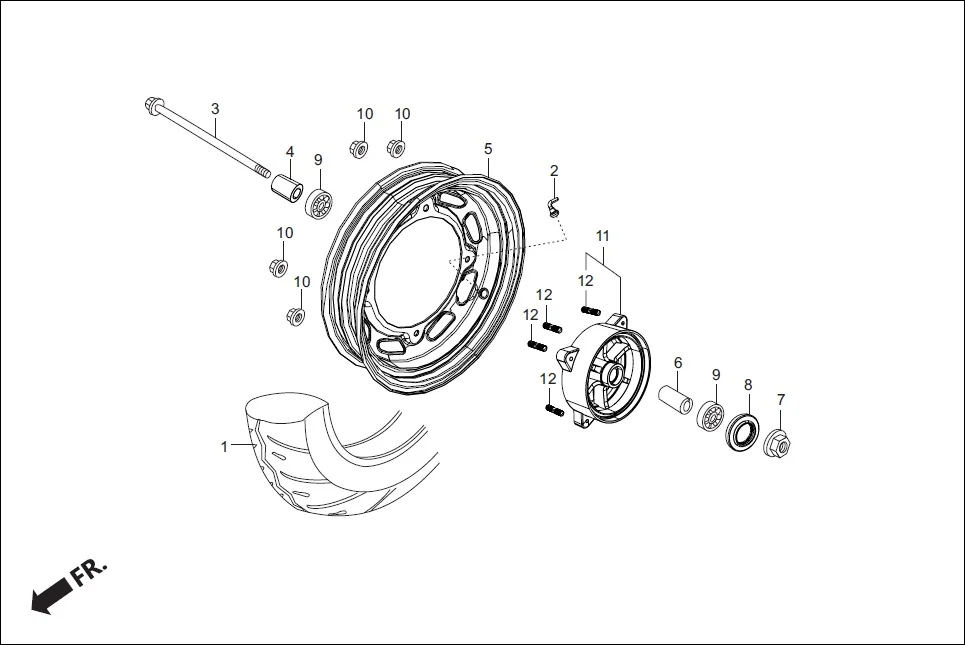

F-10A-LX - FRONT WHEEL (SHEET METAL) (LX)
Hero Destini 125 (Oct, 2018) · 4 parts
Parts in This Assembly (4)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 5 | 42702-AAY-000 | RIM COMP WHEEL | 1 | |
| 10 | 90309-KF0-000 | NUT, FLANGE, 8 MM | 4 | |
| 11 | 44610-KTP-900 | HUB SUB COMP. FR | 1 | |
| 12 | 90110-KPL-900 | BOLT, STUD, 8X22 | 4 | |
