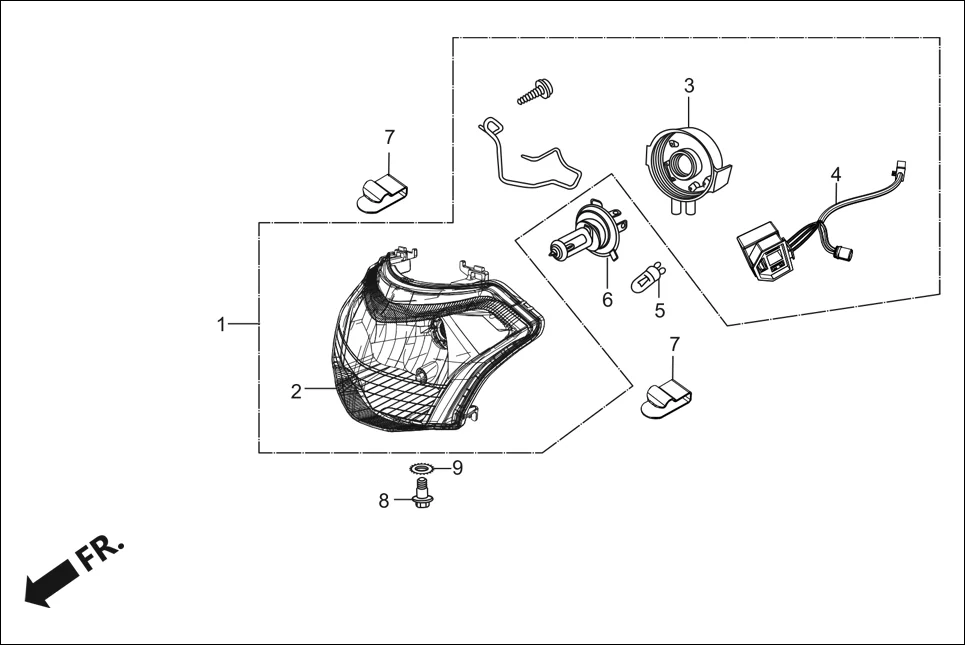

F-1 - HEAD LIGHT
Hero Destini 125 (Oct, 2018) · 9 parts
Parts in This Assembly (9)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 3310B-AAY-001 | LIGHT ASSY HEAD(W/O BULB) | 1 | |
| 2 | 33120-AAY-001 | UNIT,HEAD LIGHT | 1 | |
| 3 | 33126-KCC-730 | RUBBER COVER | 1 | |
| 4 | 33130-AAY-001 | SOCKET COMP POSITION LIGHT | 1 | |
| 5 | 33301-KVE-900 | BULB, WEDGE BASE (T10, 12V-5W) | 1 | |
| 6 | 34901-KSP-910 | BULB, HEAD LIGHT | 1 | |
| 7 | 53209-GAH-000 | CLIP, HEADLIGHT | 2 | |
| 8 | 90101-GJ6-000 | BOLT, ADJUST | 1 | |
| 9 | 90307-GJ6-000 | WASHER, LOCK, 6 MM | 1 | |
