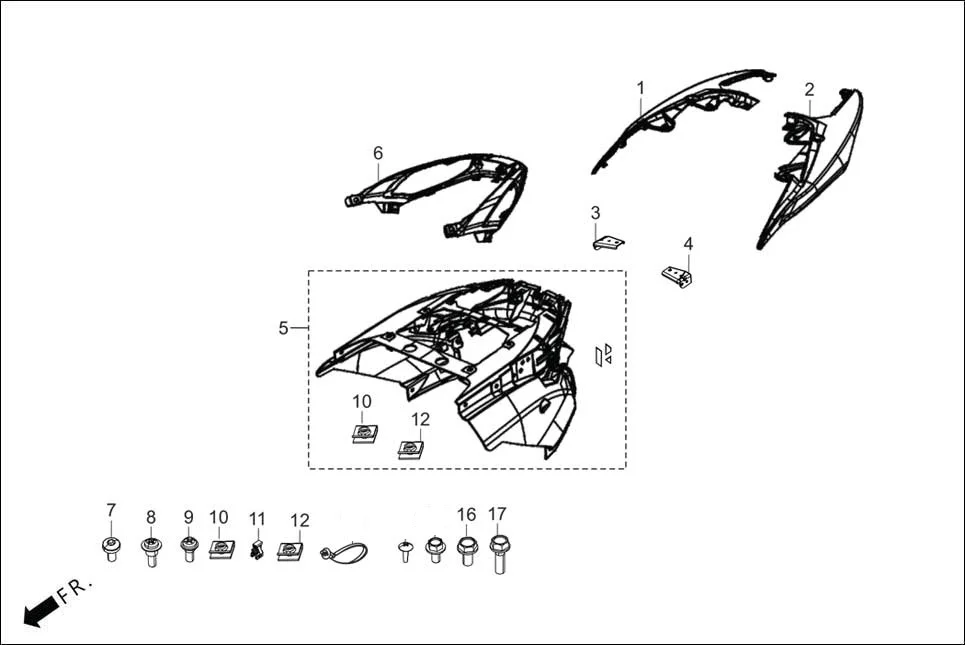

F-8A_ZX - BODY COVER
Hero DESTINI 125 BS6 OBD2(Apr., 2025) · 24 parts
Parts in This Assembly (24)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 83320-ABS-400B | COVER BODY REAR R (PEARL BLACK) | 1 | |
| 1 | 83320-ABS-400H | COVER BODY REAR R (MATT AERIS BROWN) | 1 | |
| 1 | 83320-ABS-400M | COVER BODY REAR R (MATT GOLDFISH SILVER) | 1 | |
| 2 | 83420-ABS-400B | COVER BODY REAR L (PEARL BLACK) | 1 | |
| 2 | 83420-ABS-400M | COVER BODY REAR L (MATT GOLDFISH SILVER) | 1 | |
| 3 | 83528-ABS-400 | STAY COVER RR RH | 1 | |
| 4 | 83628-ABS-400 | STAY COVER RR LH | 1 | |
| 5 | 8370A-ABS-400A | COVER RR CENTER LOWER SUB ASSY (PEARL FADELESS WHITE) | 1 | |
| 5 | 8370A-ABS-400G | COVER RR CENTER LOWER SUB ASSY (VIVA MAGENTA) | 1 | |
| 5 | 8370A-ABS-400J | COVER RR CENTER LOWER SUB ASSY (PEARL BLUE) | 1 | |
| 5 | 8370A-ABS-400R | COVER RR CENTER LOWER SUB ASSY (PP BLACK) | 1 | |
| 6 | 83707-ABS-400N | GRILL REAR CENTER (BLACK CHROME) | 1 | |
| 6 | 83707-ABS-400P | GRILL REAR CENTER (COSMIC COPPER) | 1 | |
| 6 | 83707-ABS-400Q | GRILL REAR CENTER (BRIGHT CHROME) | 1 | |
| 7 | 90101-GE0-000 | SCREW, HINGE PATCH | 6 | |
| 8 | 90102-GB2-720 | SCREW, PAN, 5X16 | 3 | |
| 9 | 90103-KVN-900 | SCREW, PAN 5 X 13.5 | 4 | |
| 10 | 90320-GC3-000 | NUT, SPRING, M5 | 2 | |
| 11 | 90666-ACD-000 | METAL CLIP SNAP FIT | 4 | |
| 12 | 90677-KAN-961 | NUT CLIP 5MM | 2 | |
| 13 | 91541-ABG-000 | CLIP BAND | 1 | |
| 15 | 95701-05010-00 | BOLT FLANGE 5X10 | 4 | |
| 16 | 95701-06012-00 | BOLT, FLANGE, 6X12 | 4 | |
| 17 | 95701-06020-07 | BOLT, FLANGE, 6 X 20 | 4 | |
