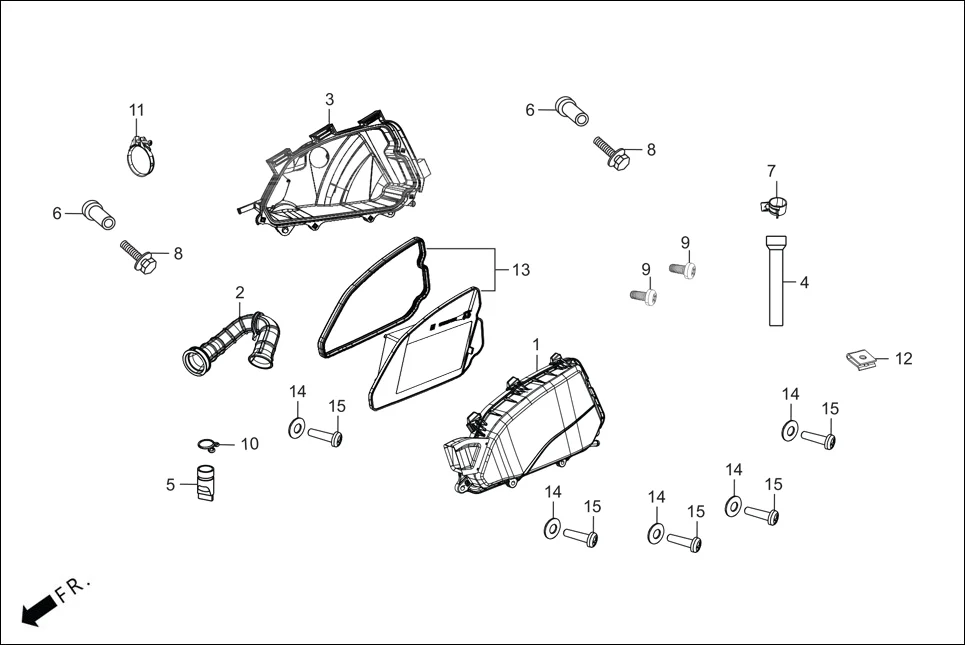

F-15 - AIR CLEANER
Hero DESTINI 125 BS6 OBD2(Apr., 2025) · 15 parts
Parts in This Assembly (15)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17235-ABV-001 | COVER SUB ASSY AIR CLEANER | 1 | |
| 2 | 17253-ABS-400 | TUBE AIR C CONN | 1 | |
| 3 | 17225-ABS-400 | CASE SUB ASSY AIR CLEANER | 1 | |
| 4 | 17216-KTP-900 | TUBE, DRAIN | 1 | |
| 5 | 17234-KCC-940 | TUBE AIR CLEANER DRAIN | 1 | |
| 6 | 50731-KV3-770 | COLLAR, PILLION STEP SET | 2 | |
| 7 | 90602-KPL-900 | CLAMP, D12 TUBE | 1 | |
| 8 | 93404-06040-07 | BOLT, WASH, 6 X 40 | 2 | |
| 9 | 93500-04032-0G | SCREW, PAN, 4 X 32 | 1 | |
| 10 | 95002-02130 | CLIP B 12.5 TUBE | 1 | |
| 11 | 95018-AAW-B00 | BAND 46 AIR/C CONN TUBE | 1 | |
| 12 | 90320-GC3-000 | NUT, SPRING, M5 | 1 | |
| 13 | 17208-ABV-001 | HOLDER COMP ELEMENT | 1 | |
| 14 | 94101-05300 | WASHER PLAIN 5 MM | 5 | |
| 15 | 93500-05020-0G | SCREW, PAN, 5 X 20 | 5 | |
