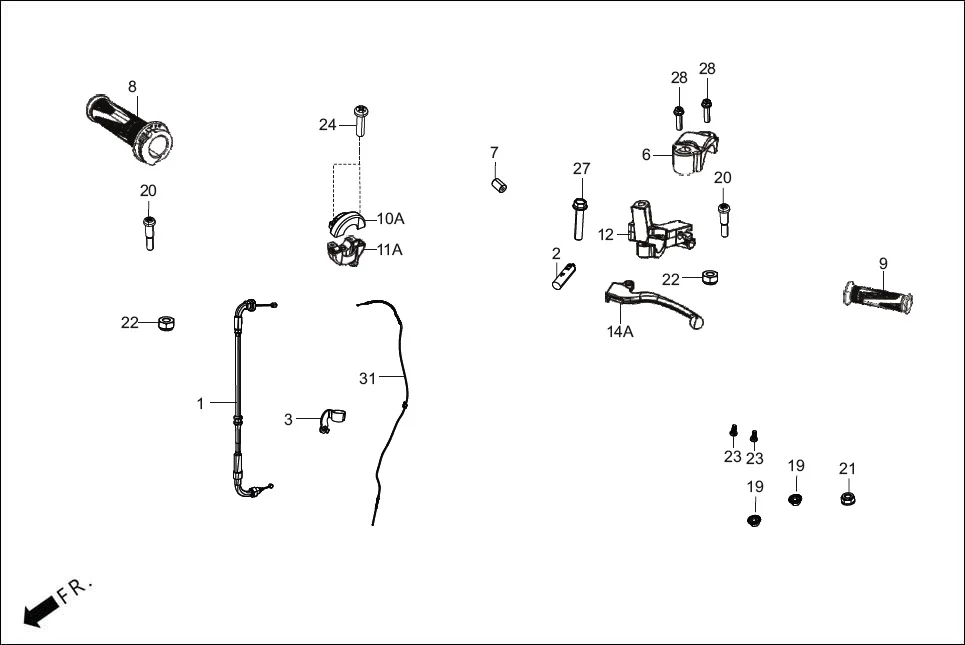

F-3_ZX - HNDL.& HNDL.COVER
Hero DESTINI 125 BS6 OBD2(Apr., 2025) · 19 parts
Parts in This Assembly (19)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17910-ABV-000 | CABLE COMP THROTTLE | 1 | |
| 2 | 35340-KTP-890 | SWITCH ASSY., FR. STOP | 1 | |
| 3 | 45156-ABS-420 | CLAMPER D | 1 | |
| 6 | 45517-166-000 | HOLDER, MASTER CYLINDER | 1 | |
| 7 | 53120-AAL-D00 | RUBBER END WEIGHT. | 3 | |
| 8 | 53140-ABV-000 | GRIP COMP THROT . | 1 | |
| 9 | 53166-AAW-000 | GRIP L HANDLE | 1 | |
| 10 | 53167-AAW-D10 | HOUSING UPPER THROTTLE | 1 | |
| 11 | 53168-AAW-D10 | HOUSING UNDER THROTTLE | 1 | |
| 12 | 53172-AAW-D00 | BRACKET L HANDLE | 1 | |
| 14 | 53178-ABV-010 | LEVER L HANDLE | 1 | |
| 19 | 90071-AAL-D00 | NUT FLANGE 6 MM. | 2 | |
| 20 | 90115-KPL-900 | SCREW, HNDL LEVER PIVOT | 2 | |
| 21 | 90304-KCS-920 | NUT`U 10 MM | 1 | |
| 22 | 90304-KPL-900 | NUT HEX 5 MM | 2 | |
| 24 | 93500-05020-0G | SCREW, PAN, 5 X 20 | 1 | |
| 27 | 95801-10050-00 | BOLT FLANGE 10X50 | 1 | |
| 28 | 96001-06025-07 | BOLT, FLANGE, SH. 6 X 25 | 4 | |
| 31 | 4345A-ABS-420 | CABLE ASSY RR BRAKE | 1 | |
