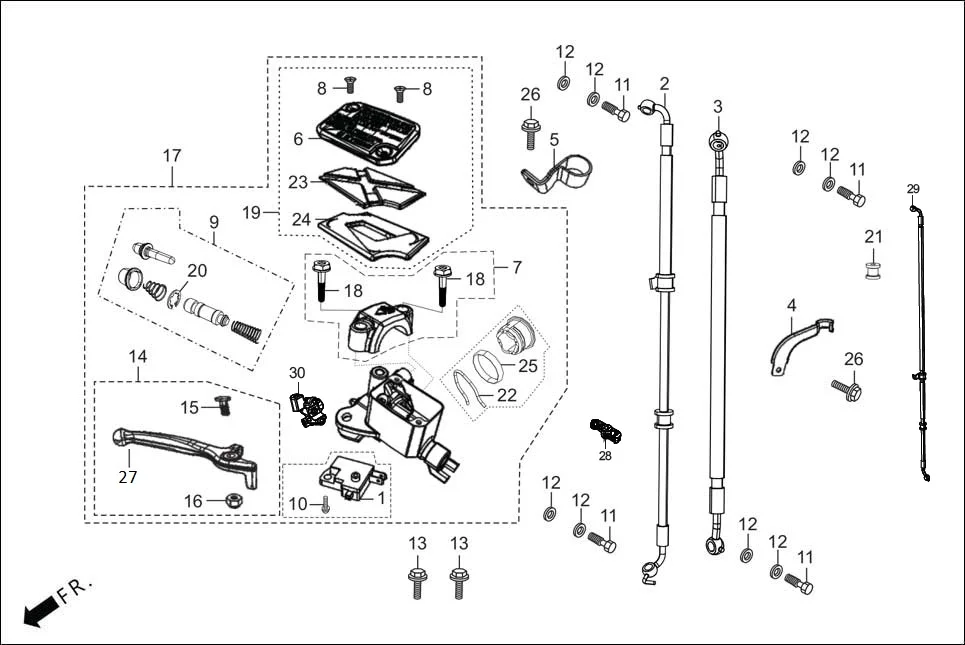

F-3A_ZX - FRONT BRAKE (MASTER CLY.)
Hero DESTINI 125 BS6 OBD2(Apr., 2025) · 11 parts
Parts in This Assembly (11)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 2 | 4513A-ABS-420 | BRAKE HOSE ASSY CCB TO CALIPER.. | 1 | |
| 3 | 45128-ABS-420 | BRK.HOSE ASSY. FR. M/C TO CCB | 1 | |
| 4 | 45157-ABS-420 | CLAMPER A FR. BRAKE | 1 | |
| 5 | 45155-ACP-000 | CLAMPER B | 1 | |
| 11 | 90145-RAA-000 | OIL BOLT 10X22 | 4 | |
| 12 | 90545-ABZ-000 | WASHER OIL BOLT | 8 | |
| 13 | 90155-AAR-000 | BOLT FLANGE 8X28 | 2 | |
| 27 | ABSRC3D001000G | LEVER CBS | 1 | |
| 28 | ABSRC3D000000G | EQUILISER | 1 | |
| 29 | ABSRC3F006000G | HOSE MC FRONT TO CALIPER FRONT ASSY | 1 | |
| 30 | ABSRC3D002000G | BRACKET LEVER HANDLE LEFT | 1 | |
