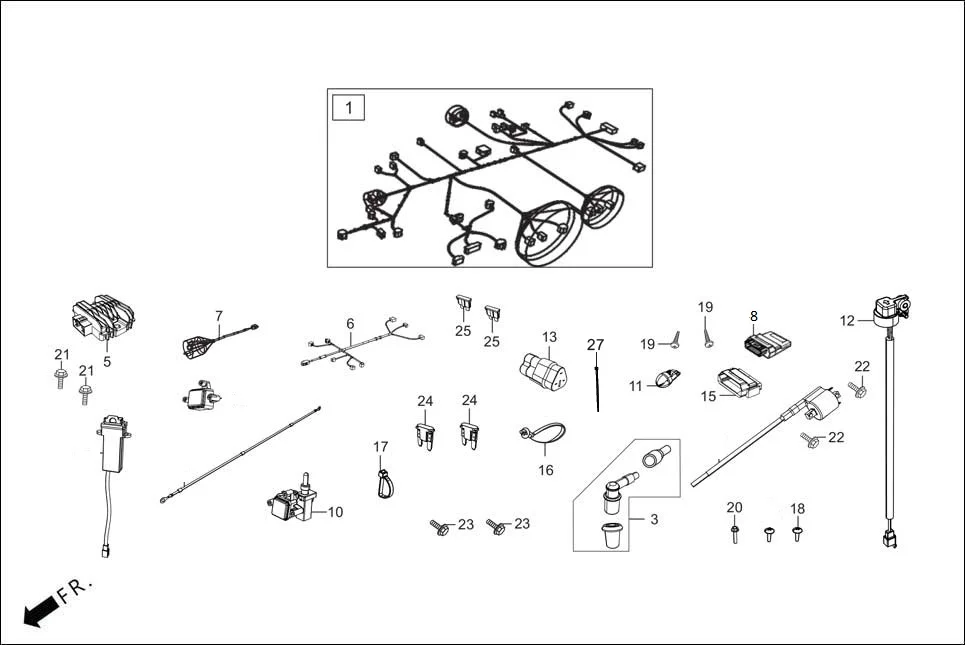

F-22_ZX - ELECTRICALS(WIRE HARNESS)
Hero DESTINI 125 BS6 OBD2(Apr., 2025) · 21 parts
Parts in This Assembly (21)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 32100-ABS-E20 | HARNESS WIRE | 1 | |
| 3 | 30700-AAW-001 | CAP ASSY., NOISE SUPPRESSOR | 1 | |
| 3 | 30700-KTP-951 | CAP ASSY., NOISE SUPPRESSOR | 1 | |
| 5 | 31600-AAC-B02 | REG RECT COMP | 1 | |
| 6 | 32102-ABS-420 | SUB CORD BATTERY | 1 | |
| 7 | 32104-ABS-420 | TAIL LIGHT SUB CORD | 1 | |
| 10 | 33200-AAW-301 | LIGHT ASSY., BOOT. | 1 | |
| 11 | 34911-AAW-301 | LED BULB WHITE WEDGE BASE | 1 | |
| 12 | 35160-ABS-20099 | SENSOR ASSY BANK ANGLE | 1 | |
| 13 | 35400-ABH-500 | RESISTOR COMP | 1 | |
| 15 | 38771-ABW-L00 | CUSHION. PGM-FI/IGN UNIT | 1 | |
| 16 | 91541-ABG-000 | CLIP BAND | 3 | |
| 17 | 91551-RAA-000 | BAND CLAMP | 3 | |
| 19 | 93903-34410 | SCREW, TAPPING, 4 X 16. | 3 | |
| 20 | 95701-05025-00 | BOLT FLANGE 5X25 | 1 | |
| 21 | 95701-06012-00 | BOLT, FLANGE, 6X12 | 2 | |
| 22 | 95701-06018-00 | BOLT FLANGE 6X18 | 2 | |
| 23 | 96001-06020-00 | BOLT, FLANGE, SH. 6 X 20 | 2 | |
| 24 | 98210-HMC-000 | MINI FUSE 10A | 4 | |
| 25 | 98215-HMC-000 | MINI FUSE 15A | 2 | |
| 27 | 90657-AAW-300 | CABLE TIE (LONG) | 1 | |
