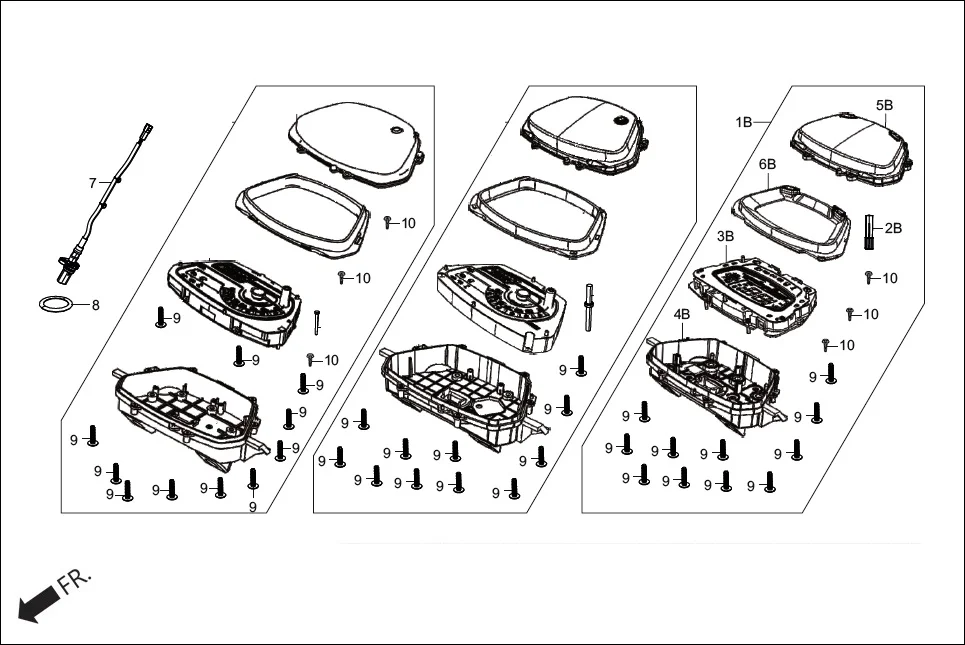

F-2-ZX - HANDLE COVER(SPEEDOMETER ASSY.)
Hero DESTINI 125 BS6 OBD2(Apr., 2025) · 10 parts
Parts in This Assembly (10)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 37200-ABS-421 | SPEEDOMETER ASSY | 1 | |
| 2 | 37203-ABS-421 | KEY TOP | 1 | |
| 3 | 37210-ABS-421 | SPEEDOMETER COMP | 1 | |
| 4 | 37212-ABS-421 | CASE UNDER ASSY | 1 | |
| 5 | 37213-ABS-421 | GLASS ASSY | 1 | |
| 6 | 37302-ABS-421 | REFLECTOR ASSY | 1 | |
| 7 | 37700-AAW-D01 | SENSOR ASSY SPEED | 1 | |
| 8 | 37701-ABS-301 | O RING SPEED SENSOR | 1 | |
| 9 | 37214-KV7-671 | SCREW, TAPPING, 3 X 12 | 11 | |
| 10 | 93903-25380 | SCREW TAPPING 5X16 | 3 | |
