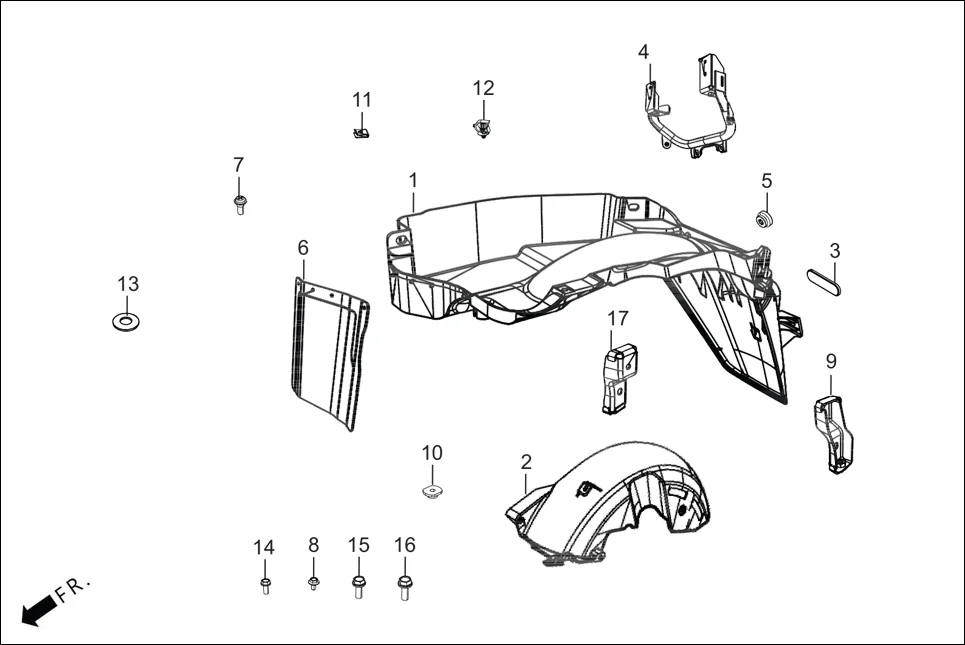

F-14 - REAR FENDER
Hero DESTINI 125 BS6 OBD2(Apr., 2025) · 17 parts
Parts in This Assembly (17)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 80106-ABS-400 | REAR FENDER | 1 | |
| 2 | 80125-AAW-D00 | HUGGER REAR | 1 | |
| 3 | 33741-ACP-001 | REFLEX REFLECTOR REAR | 1 | |
| 4 | 50186-ABS-400 | STAY REAR FENDER | 1 | |
| 5 | 61304-KRY-900 | RUBBER,LIGHT CASE MOUNT | 3 | |
| 6 | 80104-ABS-400 | SPLASH GUARD REAR FENDER | 1 | |
| 7 | 90103-KVN-900 | SCREW, PAN 5 X 13.5 | 10 | |
| 8 | 90111-KPL-900 | BOLT, INNER COVER | 1 | |
| 9 | 99614-ABS-400 | STAY BEADING MOUNT LH | 1 | |
| 10 | 90311-AAA-000 | NUT REAR FENDER | 1 | |
| 11 | 90311-MT3-000 | NUT, CLIP, 6 MM | 1 | |
| 12 | 90685-AAW-D00 | CLIP CABLE | 1 | |
| 13 | 94103-06700 | WASHER, PLAIN, 6 MM | 1 | |
| 14 | 95701-06014-00 | BOLT, FLANGE, 6 X 14 | 1 | |
| 15 | 95701-06016-00 | BOLT, FLANGE, 6X16 | 1 | |
| 16 | 95701-06020-00 | BOLT, FLANGE, 6X20 | 1 | |
| 17 | 99613-ABS-400 | STAY BEADING MOUNT RH | 1 | |
