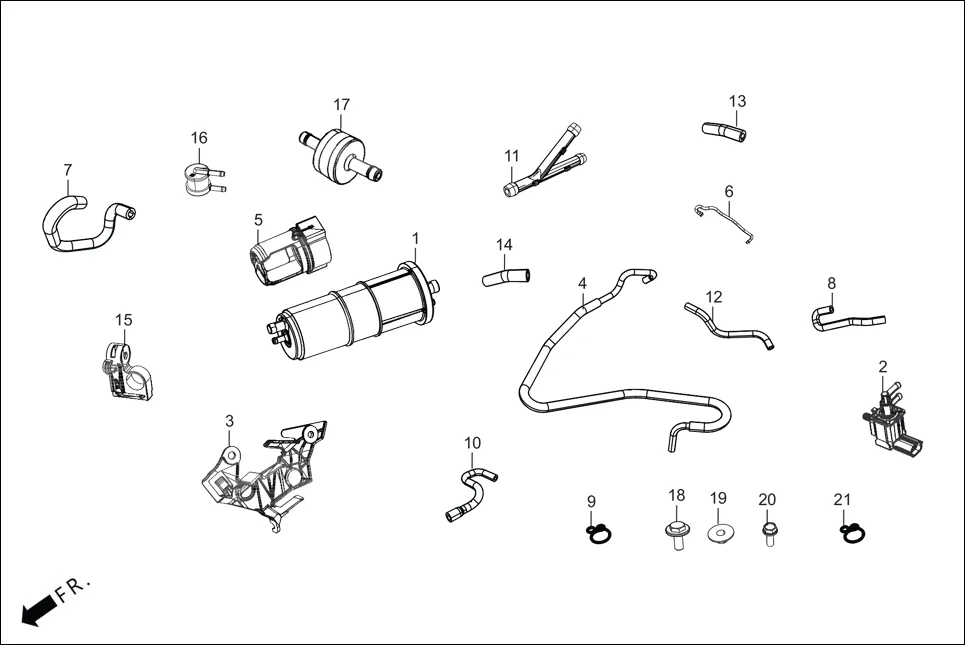

F-13A - CANISTER ASSY.
Hero DESTINI 125 BS6 OBD2(Apr., 2025) · 21 parts
Parts in This Assembly (21)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17410-AAW-B0099 | CANISTER COMP | 1 | |
| 2 | 17554-AAG-A01 | PURGE SOLENOID VALVE | 1 | |
| 2 | 17554-AAG-D01 | PURGE SOLENOID VALVE | 1 | |
| 3 | 17508-ABS-400 | STAY CANISTER | 1 | |
| 4 | 1769J-ABS-400 | TUBE PURGE VALVE | 1 | |
| 5 | 17411-AAL-900 | SUSP CANISTER | 1 | |
| 6 | 1769B-ABS-400 | TUBE CANISTER PURGE | 1 | |
| 7 | 17696-AAW-B00 | TUBE CANISTER BREATHER | 1 | |
| 8 | 1769H-ABS-400 | TUBE CANISTER DRAIN | 1 | |
| 9 | 95002-02080 | CLIP, TUBE | 11 | |
| 10 | 1769E-ABS-400 | TUBE 3WAY FUEL TANK | 1 | |
| 11 | 17230-AAH-100 | JOINT 3 WAY | 1 | |
| 12 | 1769D-ABS-400 | TUBE 3WAY JOINT CANISTER | 1 | |
| 13 | 17697-AAN-410 | TUBE ONE WAY VALVE | 1 | |
| 14 | 1769F-ABS-400 | TUBE ONE WAY 3WAY JOINT | 1 | |
| 15 | 17422-ABR-000 | STAY RUBBER EVAPO VALVE | 1 | |
| 16 | 17420-AAD-A00 | ROLL OVER VALVE | 1 | |
| 17 | 17430-AAE-100 | ONE WAY VALVE | 1 | |
| 18 | 90022-GFP-900 | BOLT WASHER 6×16 | 1 | |
| 19 | 83518-AAW-B00 | COLLAR, CANISTER STAY | 1 | |
| 21 | 95002-02070 | CLIP, B-7 TUBE | 2 | |
