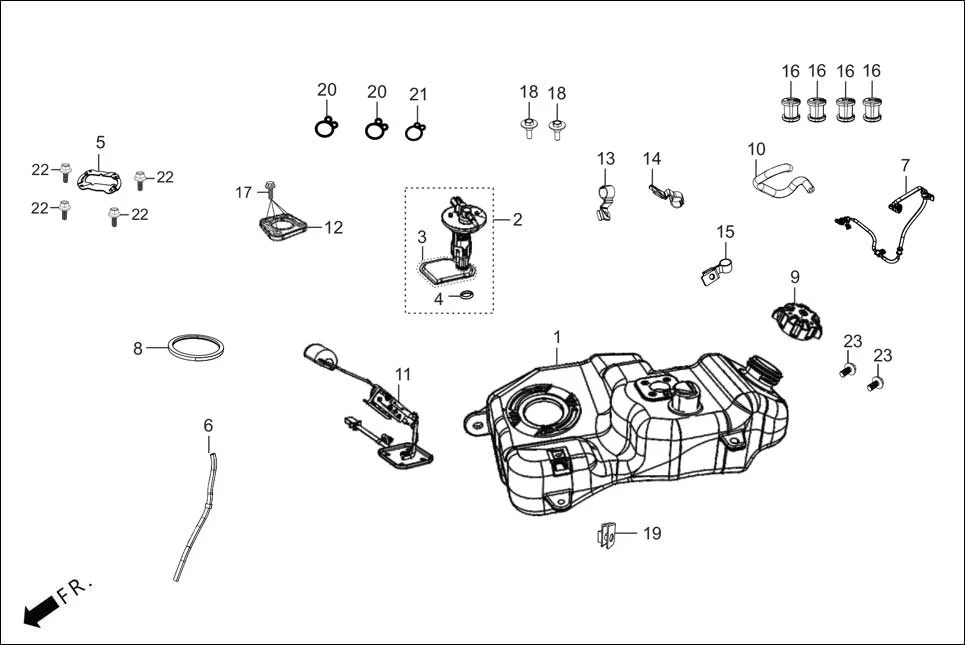

F-13 - FUEL TANK
Hero DESTINI 125 BS6 OBD2(Apr., 2025) · 23 parts
Parts in This Assembly (23)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17500-ABS-400 | TANK COMP FUEL | 1 | |
| 2 | 16700-AAL-901 | UNIT ASSY FUEL PUMP | 1 | |
| 3 | 16701-AAL-901 | FUEL PUMP FILTER | 1 | |
| 4 | 16702-AAL-901 | FUEL PUMP O-RING | 2 | |
| 5 | 17507-AAL-600 | PLATE SETTING | 1 | |
| 6 | 17515-ABS-400 | TUBE DRAIN | 1 | |
| 7 | 17570-ABS-400 | HOSE COMP FUEL FEED | 1 | |
| 8 | 17572-AAL-C00 | GASKET FUEL PUMP | 1 | |
| 9 | 17620-AAL-C00 | CAP, COMP. FUEL FILLER | 1 | |
| 10 | 1769C-ABS-400 | TUBE ROV 3WAY JOINT | 1 | |
| 11 | 37800-ABS-401 | UNIT ASSY FUEL | 1 | |
| 12 | 37801-ABR-001 | PACKING BASE | 1 | |
| 13 | 45155-AAL-900 | CLAMP, FUEL HOSE | 1 | |
| 14 | 45156-AAL-900 | CLAMP, FUEL HOSE | 1 | |
| 15 | 45157-ABS-400 | CLAMP FUEL HOSE | 1 | |
| 16 | 46428-AAL-900 | GROMMET, FUEL HOSE | 4 | |
| 17 | 90002-AAL-900 | BOLT FLANGE 5X14 | 4 | |
| 18 | 90111-06020-01 | STEP FLANGE BOLT 6X20 | 2 | |
| 19 | 90311-MT3-000 | NUT, CLIP, 6 MM | 1 | |
| 20 | 95002-02100 | CLIP, B-10 TUBE | 2 | |
| 21 | 95002-02130 | CLIP B 12.5 TUBE | 1 | |
| 22 | 95701-05010-00 | BOLT FLANGE 5X10 | 4 | |
| 23 | 95701-06012-00 | BOLT, FLANGE, 6X12 | 2 | |
