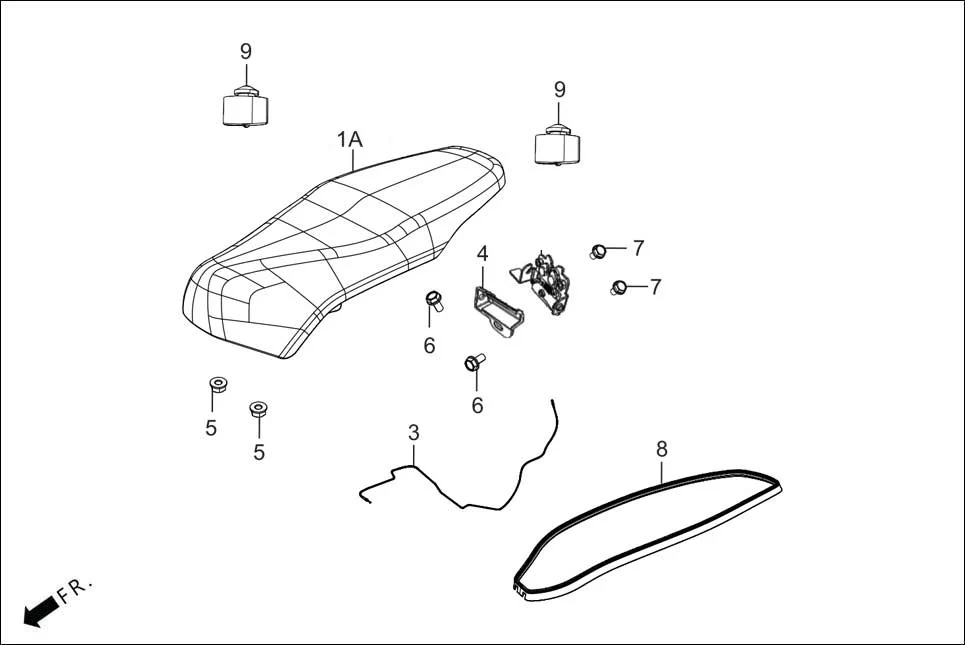

F-12_ZX - SEAT
Hero DESTINI 125 BS6 OBD2(Apr., 2025) · 9 parts
Parts in This Assembly (9)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 77200-ABS-420Z | SEAT COMP DOUBLE (VIBE BROWN) | 1 | |
| 1 | 77200-ABS-420T | SEAT COMP DOUBLE (VIBE BLACK) | 1 | |
| 3 | 77243-ABS-400 | CABLE SEAT LOCK | 1 | |
| 4 | 77261-ABS-400 | COVER SEAT CATCH | 1 | |
| 5 | 94050-06000 | NUT, FLANGE, 6 MM | 2 | |
| 6 | 95701-06010-00 | BOLT, FLANGE, 6 X 10 | 2 | |
| 7 | 95701-06012-00 | BOLT, FLANGE, 6X12 | 2 | |
| 8 | 77115-ABS-400 | RUBBER SEAL | 1 | |
| 9 | 77206-AAW-D00 | RUBBER, SEAT SETTING | 2 | |
