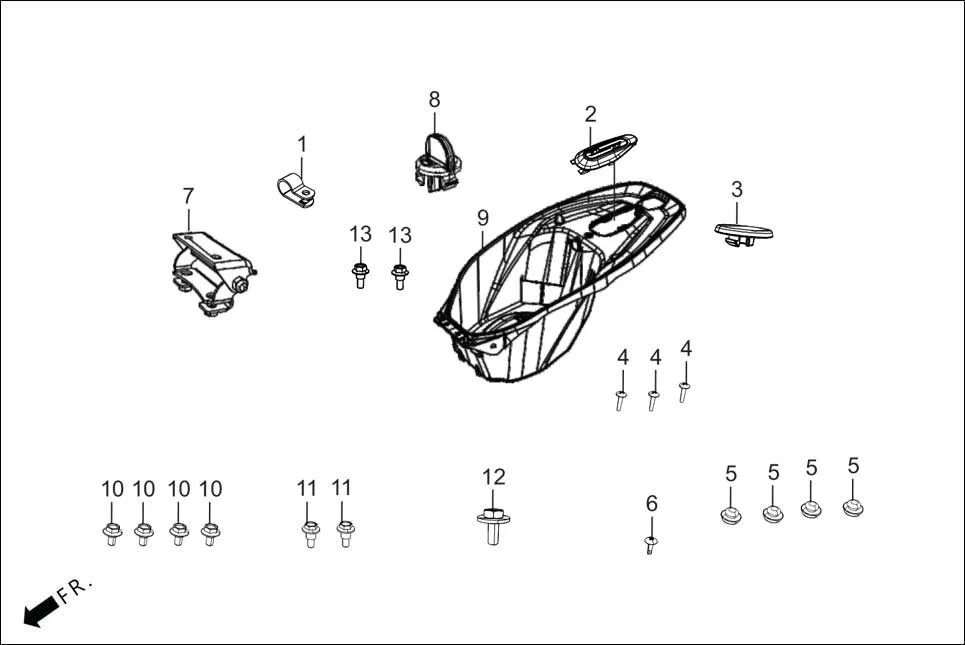

F-12A - REAR TRUNK/ REAR BAG
Hero DESTINI 125 BS6 OBD2(Apr., 2025) · 16 parts
Parts in This Assembly (16)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 37216-AAW-001 | CLAMP | 1 | |
| 2 | ABSES6A0060AYG | SET COVER BOX LUGGAGE ( PEARL BLACK) | 1 | |
| 2 | ABSES6A0060AZG | SET COVER BOX LUGGAGE (CANDY BLAZING RED) | 1 | |
| 2 | ABSES6A0060BGG | SET COVER BOX LUGGAGE (PEARL FADELESS WHITE) | 1 | |
| 2 | ABSES6A0060BHG | SET COVER BOX LUGGAGE (VIVA MAGENTA) | 1 | |
| 2 | ABSES6A0060BJG | SET ILLUST COVER BOX LUGGAGE (PEARL BLUE) | 1 | |
| 3 | 81133-AAW-500 | CAP CHOKE CABLE | 1 | |
| 4 | 93903-34410 | SCREW, TAPPING, 4 X 16. | 3 | |
| 5 | 50354-ABW-000 | STOPPER RUBBER B | 4 | |
| 6 | 93903-24380 | SCREW TAPPING, 4 X 12 | 1 | |
| 7 | 77210-ABS-400 | HINGE ASSY. SEAT | 1 | |
| 8 | 81269-ABS-400 | KNOB BOX LUGGAGE A | 1 | |
| 9 | 81250-ABS-400 | BOX LUGGAGE A | 1 | |
| 10 | 90111-KPL-900 | BOLT, INNER COVER | 4 | |
| 12 | 93404-06016-07 | BOLT-WASHER, 6 X 16 | 1 | |
| 13 | 90111-06017-07 | BOLT FLANGE 6MM | 2 | |
