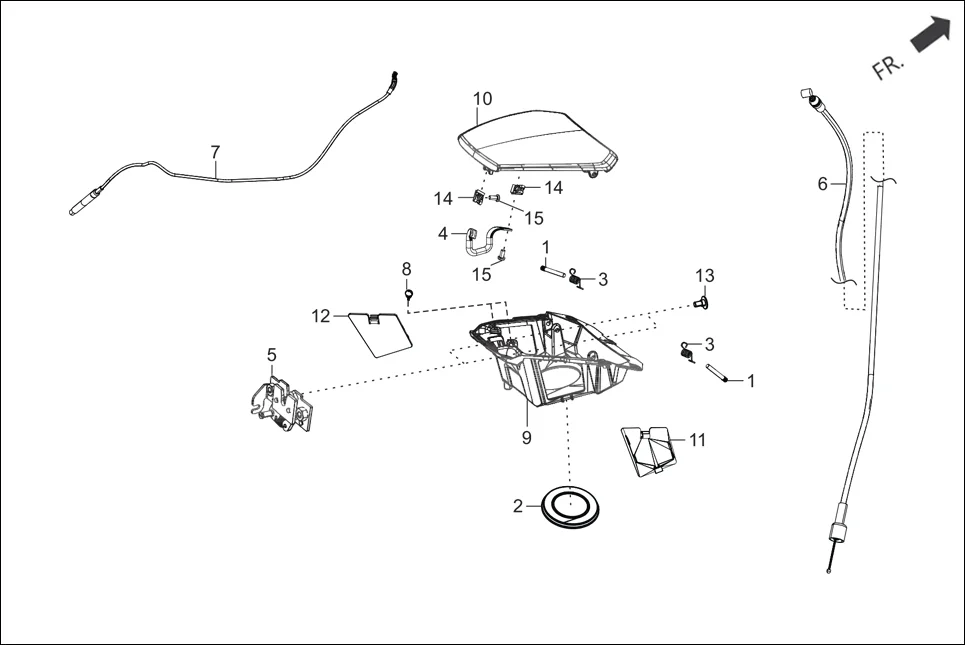

F-8B - BODY COVER
Hero DESTINI 125(Dec.,2024) · 17 parts
Parts in This Assembly (17)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 15543-ABS-400 | FUEL LID AXLE | 2 | |
| 2 | 17505-AAL-500 | TRAY, FUEL | 1 | |
| 3 | 17544-ABS-400 | SPRING FUEL LID | 2 | |
| 4 | 77102-ABS-400 | HOOK FUEL LID | 1 | |
| 5 | 77235-AAW-000 | CATCH FUEL LID | 1 | |
| 6 | 77244-ABS-401 | FUEL LID COVER LATCH CABLE | 1 | |
| 7 | 77245-ABS-400 | FUEL LID CABLE CATCH COVER RR | 1 | |
| 8 | 80145-AAW-000 | RUBBER STOPPER | 2 | |
| 9 | 80153-ABS-400 | TRAY FUEL | 1 | |
| 10 | 80154-ABS-400B | FUEL LID (PEARL BLACK) | 1 | |
| 10 | 80154-ABS-400F | FUEL LID (METALLIC GUN METAL) | 1 | |
| 10 | 80154-ABS-400H | FUEL LID (MATT AERIS BROWN) | 1 | |
| 10 | 80154-ABS-400M | FUEL LID (MATT GOLDFISH SILVER) | 1 | |
| 11 | 80159-ABS-400 | COVER TRAY FUEL R | 1 | |
| 12 | 80160-ABS-400 | COVER TRAY FUEL L | 1 | |
| 13 | 90113-AAW-000 | BOLT SPECIAL HEX.6X14 | 2 | |
| 15 | 93500-05010-0G | SCREW PAN 5X10 | 2 | |
