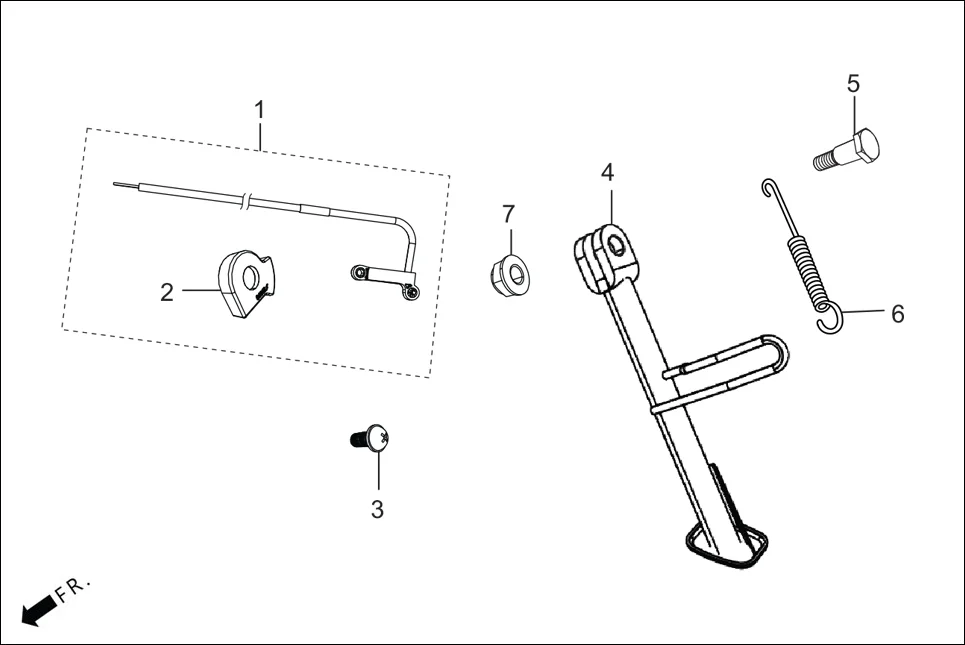

FOP-2 - (OPTIONAL)
Hero DESTINI 125(Dec.,2024) · 7 parts
Parts in This Assembly (7)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 3514A-ABH-50099 | SENSOR SIDE STAND ASSY | 1 | |
| 2 | 35130-ABH-501 | MAGNET HOLDER | 1 | |
| 2 | 35130-ABH-502 | MAGNET HOLDER ASSY. | 1 | |
| 3 | 93891-05014-10 | SCREW WASH,5X14 | 1 | |
| 4 | 50530-ABS-400 | BAR COMP SIDE STAND | 1 | |
| 5 | 90107-AAB-000 | SCREW SIDE STAND PIVOT | 1 | |
| 6 | 50536-KPL-900 | SPG. SIDE SET | 1 | |
