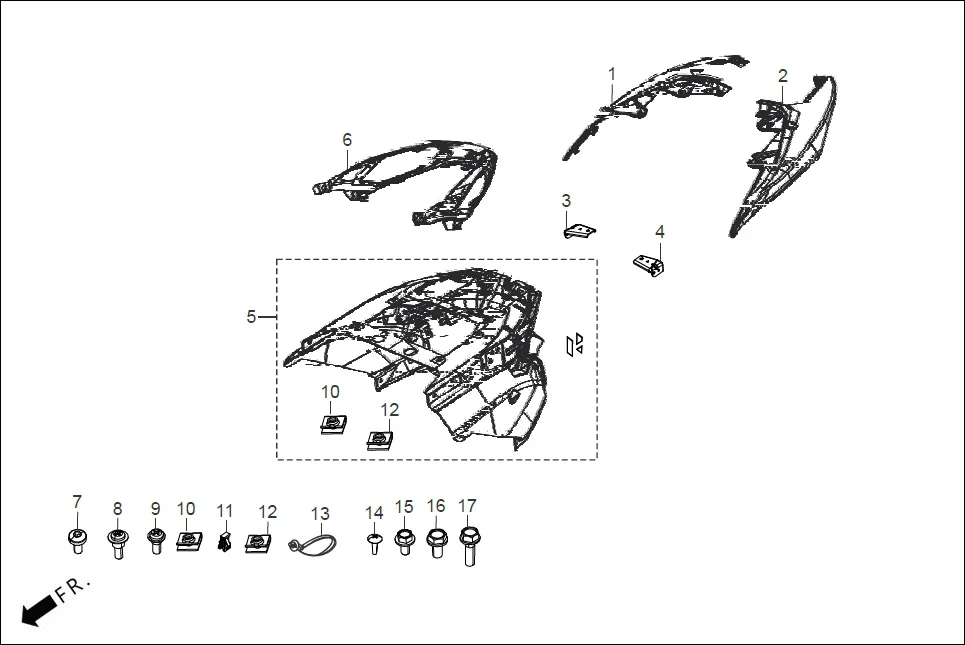

F-8A - BODY COVER
Hero DESTINI 125(Dec.,2024) · 12 parts
Parts in This Assembly (12)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 83320-ABS-400B | COVER BODY REAR R (PEARL BLACK) | 1 | |
| 1 | 83320-ABS-400F | COVER BODY REAR R (METALLIC GUN METAL) | 1 | |
| 2 | 83420-ABS-400B | COVER BODY REAR L (PEARL BLACK) | 1 | |
| 2 | 83420-ABS-400F | COVER BODY REAR L (METALLIC GUN METAL) | 1 | |
| 3 | 83528-ABS-400 | STAY COVER RR RH | 1 | |
| 4 | 83628-ABS-400 | STAY COVER RR LH | 1 | |
| 5 | 8370A-ABS-400R | COVER RR CENTER LOWER SUB ASSY (PP BLACK) | 1 | |
| 6 | 83707-ABS-400Q | GRILL REAR CENTER (BRIGHT CHROME) | 1 | |
| 8 | 90102-GB2-720 | SCREW, PAN, 5X16 | 3 | |
| 9 | 90103-KVN-900 | SCREW, PAN 5 X 13.5 | 4 | |
| 13 | 91541-ABG-000 | CLIP BAND | 1 | |
| 15 | 95701-05010-00 | BOLT FLANGE 5X10 | 4 | |
