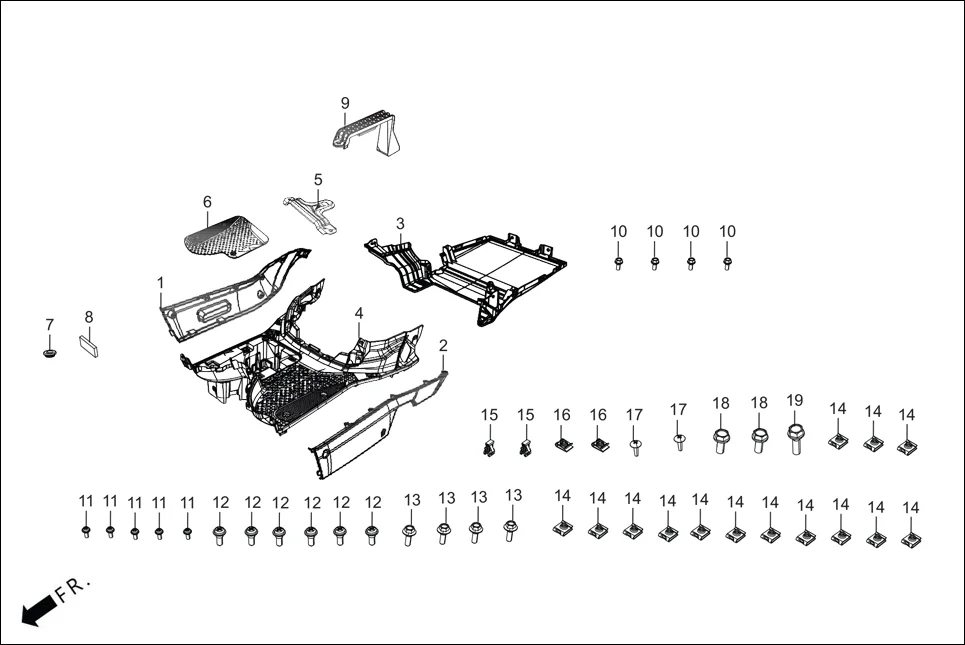

F-7 - FLOOR PANEL ASSY.
Hero DESTINI 125(Dec.,2024) · 29 parts
Parts in This Assembly (29)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | ABSEB4E0030BGG | COVER R FLOOR SIDE SUB ASSY (PEARL FADELESS WHITE) | 1 | |
| 1 | ABSEB4E0030AYG | COVER R FLOOR SIDE SUB ASSY (PEARL BLACK) | 1 | |
| 1 | ABSEB4E0030AZG | COVER R FLOOR SIDE SUB ASSY (CANDY BLAZING RED) | 1 | |
| 1 | ABSEB4E0030BHG | COVER R FLOOR SIDE SUB ASSY (VIVA MAGENTA) | 1 | |
| 1 | ABSEB4E0030BJG | COVER R FLOOR SIDE SUB ASSY (PEARL BLUE) | 1 | |
| 2 | ABSEB4E0020BGG | COVER L FLOOR SIDE SUB ASSY (PEARL FADELESS WHITE) | 1 | |
| 2 | ABSEB4E0020AYG | COVER L FLOOR SIDE SUB ASSY (PEARL BLACK) | 1 | |
| 2 | ABSEB4E0020AZG | COVER L FLOOR SIDE SUB ASSY (CANDY BLAZING RED) | 1 | |
| 2 | ABSEB4E0020BHG | COVER L FLOOR SIDE SUB ASSY (VIVA MAGENTA) | 1 | |
| 2 | ABSEB4E0020BJG | COVER L FLOOR SIDE SUB ASSY (PEARL BLUE) | 1 | |
| 3 | 50621-ABS-400 | COVER UNDER | 1 | |
| 4 | 64310-ABS-400R | PANEL FLOOR (PP BLACK) | 1 | |
| 4 | 64310-ABS-400S | PANEL FLOOR (PP BROWN) | 1 | |
| 5 | 64347-ABS-400 | STAY PANEL FLOOR | 1 | |
| 6 | 64410-ABS-400R | COVER BATTERY BOX (PP BLACK) | 1 | |
| 6 | 64410-ABS-400S | COVER BATTERY BOX (PP BROWN) | 1 | |
| 7 | 83163-ABA-000 | GROMMET CIL SIDE COVER | 1 | |
| 8 | 83407-KTR-940 | RUBBER, BATTERY | 1 | |
| 9 | 83529-ABV-000 | STAY BATTERY CLAMP | 1 | |
| 10 | 90101-AAG-300 | BOLT SPECIAL 5X11.5 | 4 | |
| 11 | 90101-GE0-000 | SCREW, HINGE PATCH | 5 | |
| 12 | 90103-AAW-B00 | SCREW PAN 5X15.5 | 6 | |
| 13 | 90111-06019-03 | BOLT FLANGE 6MM | 4 | |
| 14 | 90320-GC3-000 | NUT, SPRING, M5 | 14 | |
| 15 | 90666-ACD-000 | METAL CLIP SNAP FIT | 2 | |
| 16 | 90677-KAN-961 | NUT CLIP 5MM | 2 | |
| 17 | 93903-34310 | SCREW TAPPING M4X12 | 2 | |
| 18 | 95701-06014-08 | BOLT FLANGE 6X14 | 2 | |
| 19 | 95701-06020-07 | BOLT, FLANGE, 6 X 20 | 1 | |
