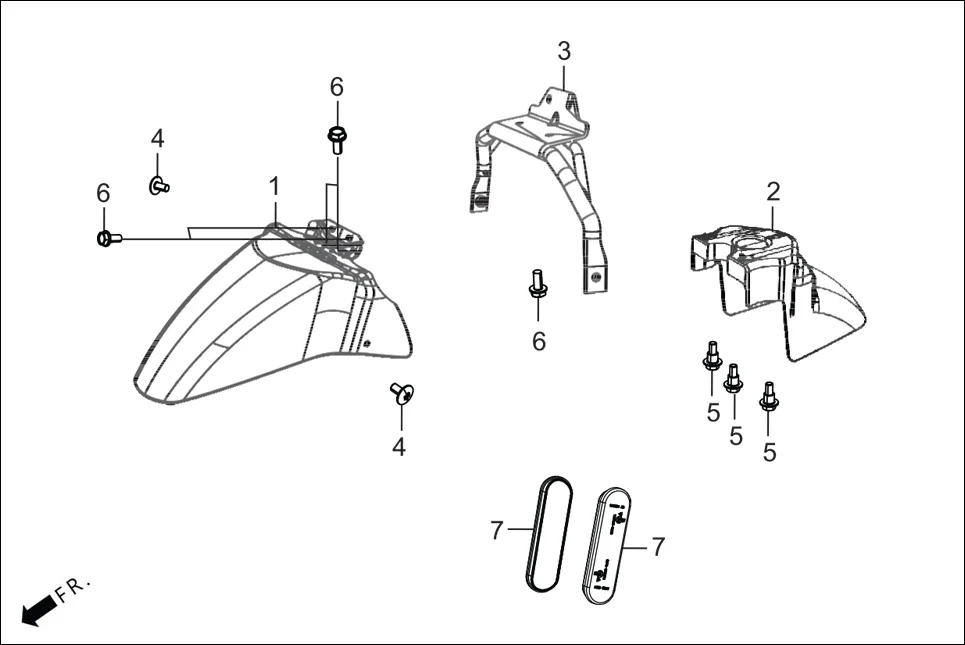

F-5 - FRONT FENDER
Hero DESTINI 125(Dec.,2024) · 11 parts
Parts in This Assembly (11)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 61100-ABS-400A | FRONT FENDER A ASSY (PEARL FADELESS WHITE) | 1 | |
| 1 | 61100-ABS-400B | FRONT FENDER A ASSY (PEARL BLACK) | 1 | |
| 1 | 61100-ABS-400E | FRONT FENDER A ASSY (CANDY BLAZING RED) | 1 | |
| 1 | 61100-ABS-400G | FRONT FENDER A ASSY (VIVA MAGENTA) | 1 | |
| 1 | 61100-ABS-400J | FRONT FENDER A ASSY (PEARL BLUE) | 1 | |
| 2 | 61110-ABS-400 | FRONT FENDER B | 1 | |
| 3 | 61120-ABS-400 | STAY FRONT FENDER ASSY | 1 | |
| 4 | 90107-AAY-400 | BOLT, BODY COVER SET | 2 | |
| 5 | 90112-KRP-900 | BOLT, FLANGE, 6X18 | 3 | |
| 6 | 95701-06014-08 | BOLT FLANGE 6X14 | 5 | |
| 7 | 33760-ACP-001 | REFLEX REFLECTOR FRONT | 2 | |
