BAJAJ

SPC PULSAR 150 TWIN DISC REV 12

1041 parts across 55 plates

Color (Transition)Doc: 71120101Rev: REV. 12Date: 2019-11-0155 plates · 6 kits · 21 revisions

+43 more

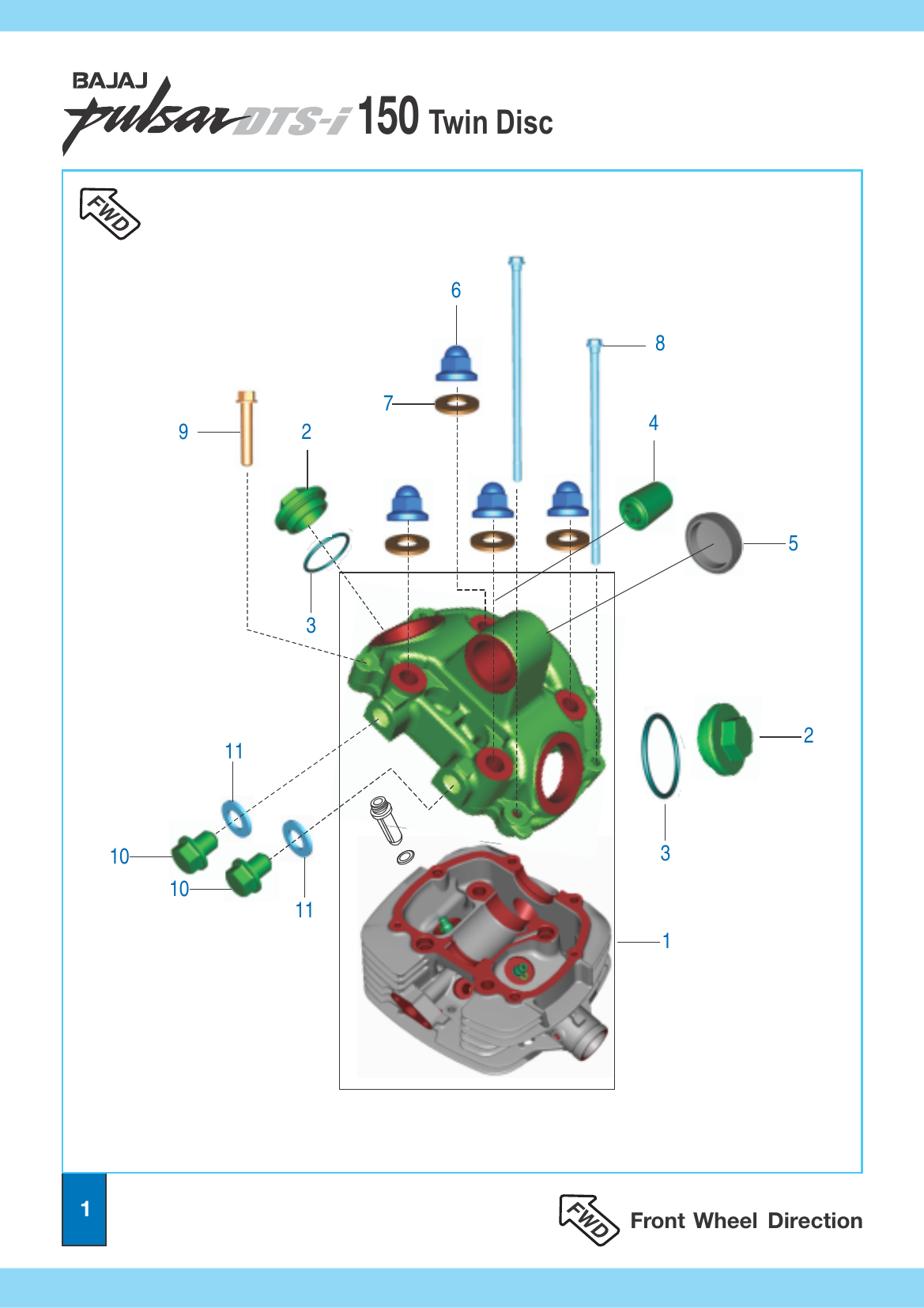

Plate 1

Cover Cylinder Head

12 parts

DH 1021 03

Head cylinder - cover assembly

Ref 11 Refer Kit List

DH 1019 16

bolt - M12 x 1.5 x L15

Ref 102

DG 1014 98

Gasket

Ref 112 2 2

52 JN01 36

Cover Tappet

Ref 22

39 2391 21

‘O’ Ring

Ref 32

DS 1011 66

Silent Bush

Ref 41

DH 1022 01

Camshaft Cap

Ref 51

39 2647 15

Domed Cap Nut

Ref 64

DS 1010 84

Copper Washer

Ref 74

39 2532 04

Hex. Bolt with Flange

Ref 82

39 1075 04

Hex. Bolt / Flange

Ref 94

KA ED06 35 Bolt flanged small

(no description)

Ref 94 For ABS Model

Ref	Part #	Description	Qty.	Remarks
1	DH 1021 03	Head cylinder - cover assembly	—	1 Refer Kit List
10	DH 1019 16	bolt - M12 x 1.5 x L15	—	2
11	DG 1014 98	Gasket	—	2 2 2
2	52 JN01 36	Cover Tappet	—	2
3	39 2391 21	‘O’ Ring	—	2
4	DS 1011 66	Silent Bush	—	1
5	DH 1022 01	Camshaft Cap	—	1
6	39 2647 15	Domed Cap Nut	—	4
7	DS 1010 84	Copper Washer	—	4
8	39 2532 04	Hex. Bolt with Flange	—	2
9	39 1075 04	Hex. Bolt / Flange	—	4
9 var. of 9	KA ED06 35 Bolt flanged small	(no description)	—	4 For ABS Model

Showing 12 parts in Plate 1
