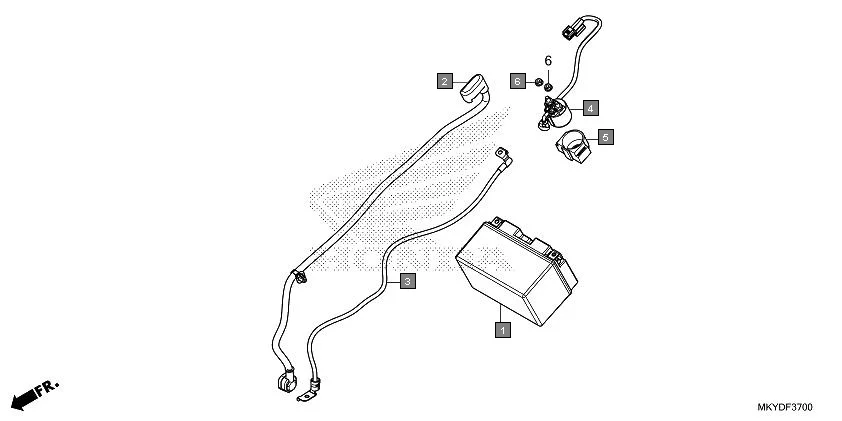

F-37 - BATTERY
HONDA CBR650R CBR650RAN · 6 parts
Parts in This Assembly (6)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 31500-MGZ-A01 | BATTERY(FTZ10S)(FURUKAWA) | 1 | |
| 2 | 32410-MKY-D10 | CABLE, STARTER MOTOR | 1 | |
| 3 | 32601-MKN-D10 | CABLE, BATTERY EARTH | 1 | |
| 4 | 35850-MKY-D51 | SWITCH ASSY., STARTER MAGNETIC | 1 | |
| 5 | 35856-HP5-600 | RUBBER, MAGNETIC SHOCK | 1 | |
| 6 | 90071-MB0-000 | NUT-WASHER, 6MM | 2 | |
