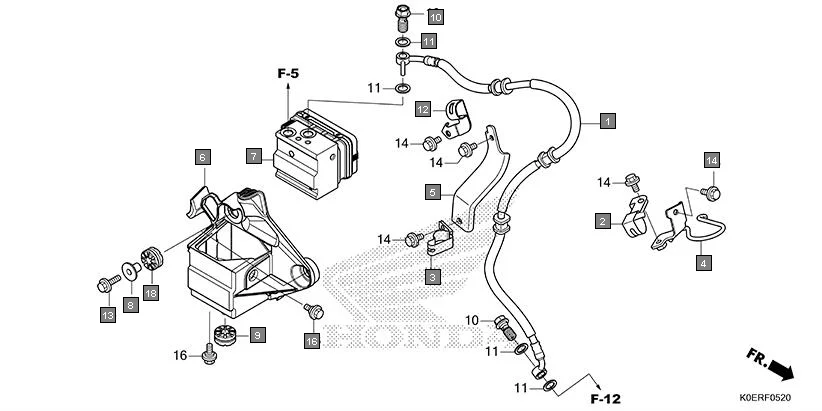

F-5-20 - ABS MODULATOR
HONDA SP160 CBF160FSR · 16 parts
Parts in This Assembly (16)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 45127-K0E-DF1 | HOSE COMP. B, FR. BRAKE | 1 | |
| 2 | 45155-K0E-DF0 | CLAMPER A, FR. BRAKE HOSE | 1 | |
| 3 | 45156-K0E-DF0 | CLAMPER B, FR. BRAKE HOSE | 1 | |
| 4 | 45160-K0E-D20 | STAY COMP. A, FR. BRAKE HOSE | 1 | |
| 5 | 45170-K0E-D00 | STAY COMP. B, FR. BRAKE HOSE | 1 | |
| 6 | 50345-K1K-D00 | BOX, ABS MODULATOR | 1 | |
| 7 | 57110-K0E-DD1 | MODULATOR ASSY. | 1 | |
| 8 | 61102-KTY-D30 | COLLAR, RADIATOR MOUNTING | 2 | |
| 9 | 77208-KW7-900 | RUBBER B, SEAT MOUNTING | 1 | |
| 10 | 90145-GAZ-981 | BOLT, OIL, 10X22 | 2 | |
| 11 | 90545-300-000 | WASHER ,OIL BOLT | 4 | |
| 12 | 45157-K0E-DF0 | CLAMPER C, FR. BRAKE HOSE | 1 | |
| 13 | 95701-06022-00 | BOLT, FLANGE, SH. 6 X 22 | 2 | |
| 14 | 96001-06012-07 | BOLT, FLANGE, SH., 6 X 12 | 5 | |
| 16 | 90111-K98-E00 | BOLT, FLANGE, 6MM | 2 | |
| 18 | 33705-KW7-900 | RUBBER A TAIL LIGHT MOUNT | 2 | |
