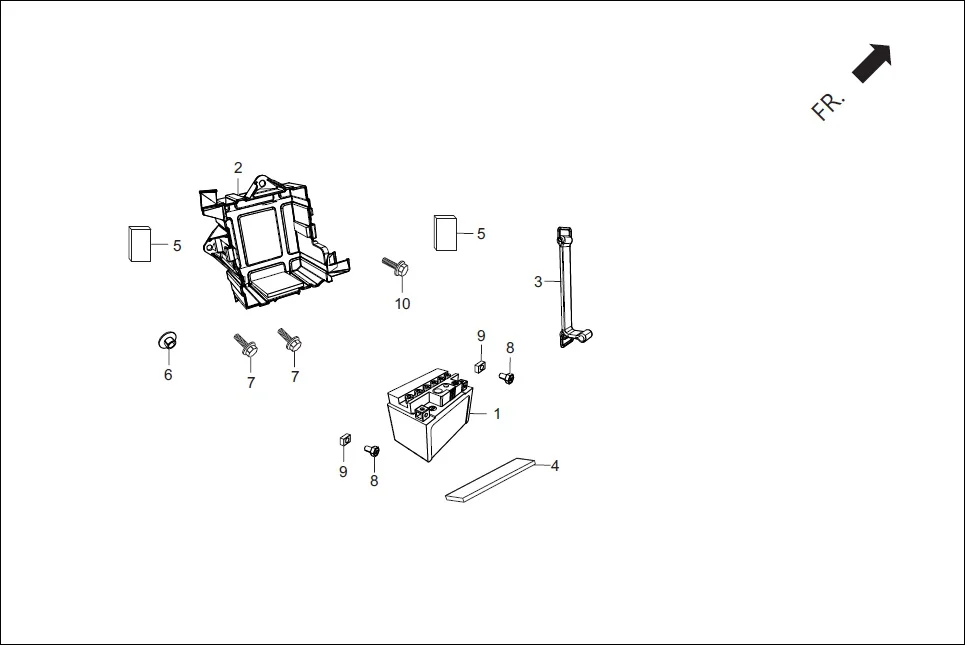

F-24B-BATTERY ASSY.
HeroXtreme 200R (June,2018) · 10 parts
Parts in This Assembly (10)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 31500-KRP-801 | BATTERY ASSY | 1 | |
| 2 | 1723A-AAB-A00 | BOX BATTERY ASSY | 1 | |
| 3 | 50327-AAB-A00 | BAND BATTERY | 1 | |
| 4 | 83403-AAB-A000-20 | CUSHION BATTERY 1 | 1 | |
| 5 | 83403-AAB-A000-21 | CUSHION BATTERY 2 | 2 | |
| 6 | 61107-KK6-000 | WASHER, 6MM | 1 | |
| 7 | 90111-187-000 | BOLT, FLANGE. 6 MM | 2 | |
| 8 | 90122-KVT-941 | BOLT BATTERY TERMINAL | 2 | |
| 9 | 90306-KVT-941 | NUT BATTERY TERMINAL | 2 | |
| 10 | 95701-06018-00 | BOLT FLANGE 6X18 | 1 |
