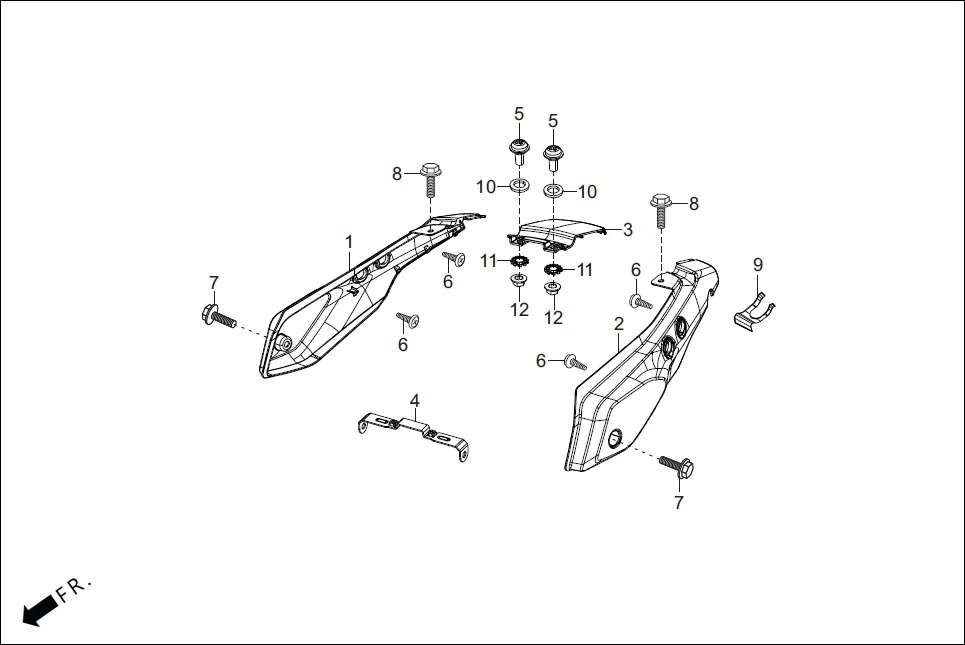

F-12A-WO_CONNECT - BODY COVER (R./L. COWLS)
Hero XPULSE 200T OBD II(Jun,2023) · 17 parts
Parts in This Assembly (17)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 77240-ABW-J00R | SET REAR COWL R (MATT FUNK LIME YELLOW) | 1 | |
| 1 | 77240-ABW-J00S | SET REAR COWL R (SPORTS RED) | 1 | |
| 1 | 77240-ABW-J00T | SET REAR COWL R (METALLIC MATT SHIELD GOLD) | 1 | |
| 2 | 77250-ABW-J00R | SET REAR COWL L (MATT FUNK LIME YELLOW) | 1 | |
| 2 | 77250-ABW-J00S | SET REAR COWL L (SPORTS RED) | 1 | |
| 2 | 77250-ABW-J00T | SET REAR COWL L (METALLIC MATT SHIELD GOLD) | 1 | |
| 3 | 77230-ABW-J00R | SET REAR COWL CENTER (MATT FUNK LIME YELLOW) | 1 | |
| 3 | 77230-ABW-J00S | SET REAR COWL CENTER (SPORTS RED) | 1 | |
| 3 | 77230-ABW-J00T | SET REAR COWL CENTER (METALLIC MATT SHIELD GOLD) | 1 | |
| 5 | 91508-KST-940 | SCREW, PAN, 5 X 14 | 2 | |
| 6 | 93903-34210 | SCREW TAPPING 4X10 | 4 | |
| 7 | 96001-06012-00 | BOLT,FLANGE,SH,.6 X 12 | 2 | |
| 8 | 90111-187-000 | BOLT, FLANGE. 6 MM | 2 | |
| 9 | 75581-AAN-B00 | SET SPRING LOCK KEY | 1 | |
| 10 | 90502-KRY-930 | WASHER , BRAKE ROD | 2 | |
| 11 | 90307-GJ6-000 | WASHER, LOCK, 6 MM | 2 | |
| 12 | 94050-05000 | NUT FLANGE, 5 MM | 2 | |
