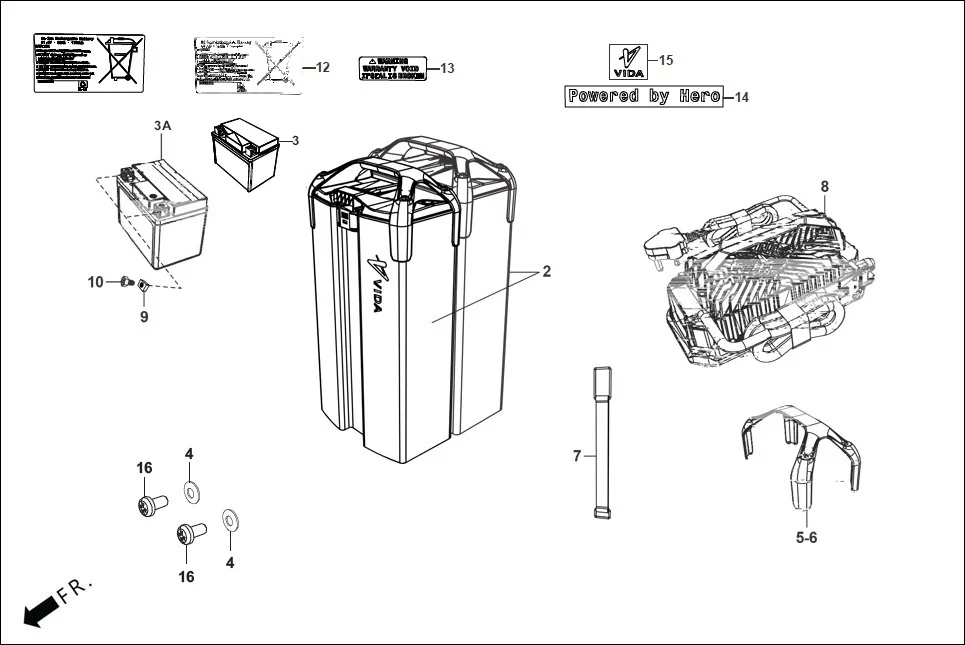

E-4_PRO-BATTERY
HeroVIDA (June,2023) · 9 parts
Parts in This Assembly (9)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 2 | VD31800-ACP-011 | 8P BATTERY | 2 | |
| 4 | VD94101-05000 | WASHER PLAIN 5 MM | 2 | |
| 5 | VD31824-ACP-000 | HANDLE COVER | 1 | |
| 6 | VD31824-ACP-010 | HANDLE COVER | 1 | |
| 7 | VD50327-ACP-000 | BAND CHARGER | 1 | |
| 8 | VD31850-ACP-001 | PORTABLE BATTERY CHARGER | 1 | |
| 9 | VD90306-KRY-971 | NUT BATTERY TERMINAL | 2 | |
| 10 | VD90122-KRY-971 | BOLT BATTERY TERMINAL | 2 | |
| 16 | VD93500-05010-1A | SCREW, PAN, 5X10 | 2 |
