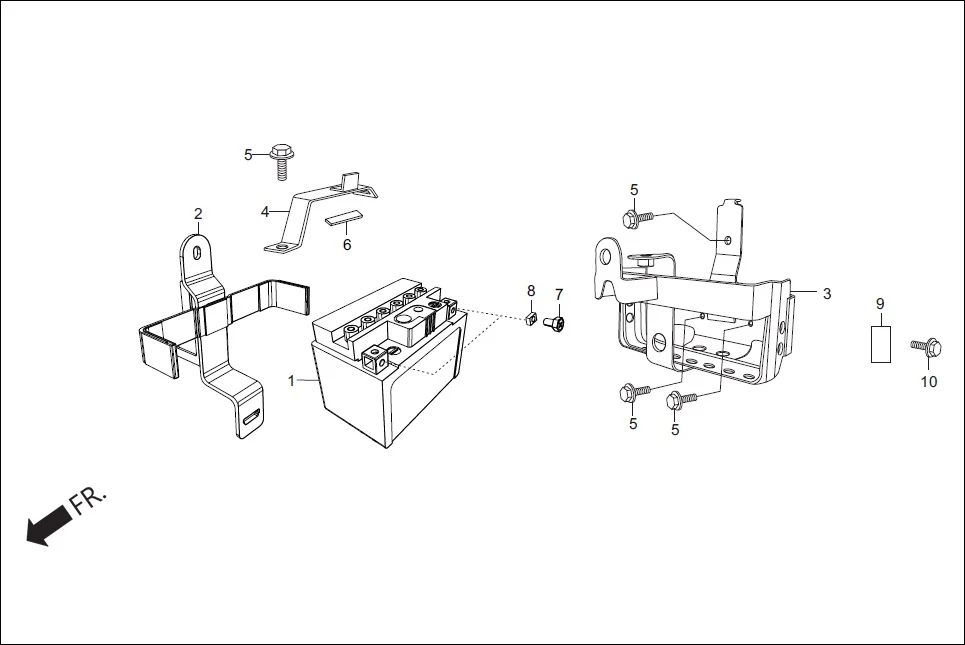

F-21 - BATTERY
Hero Pleasure+ (June,2019) · 10 parts
Parts in This Assembly (10)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 31500-KRP-801 | BATTERY ASSY | 1 | |
| 2 | 50338-AAL-500 | BAND, BATTERY | 1 | |
| 3 | 50330-AAL-500 | TRAY COMP., BATTERY | 1 | |
| 4 | 50338-KTP-950 | BAND, BATTERY | 1 | |
| 5 | 95701-06012-00 | BOLT, FLANGE, 6X12 | 4 | |
| 6 | 50345-KTP-950 | CUSHION BATTERY (COVENTIONAL BATTERY) | 1 | |
| 7 | 90122-KVT-941 | BOLT BATTERY TERMINAL | 2 | |
| 8 | 90306-KVT-941 | NUT BATTERY TERMINAL | 2 | |
| 9 | 50337-AAL-500 | STAY CDI | 1 | |
| 10 | 95701-06010-07 | BOLT, FLANGE, 6 X 10 | 1 | |
