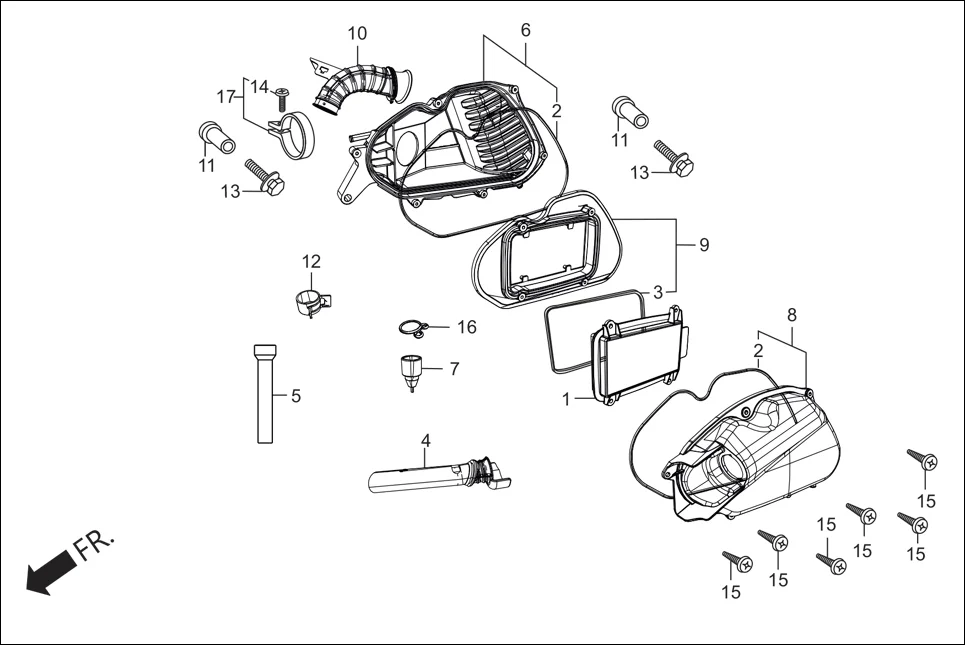

F-15-AIR CLEANER
HeroPleasure (Feb, 2017) · 15 parts
Parts in This Assembly (15)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17210-AAW-300 | ELEMENT COMP AIR/C | 1 | |
| 2 | 17212-AAL-200 | SEAL AIR/ C COVER | 2 | |
| 3 | 17213-AAL-200 | SEAL AIR/C ELEMENT | 1 | |
| 4 | 17215-KRP-980 | DUCT, AIR CLEANER | 1 | |
| 5 | 17216-KTP-900 | TUBE, DRAIN | 1 | |
| 7 | 17234-KCC-940 | TUBE AIR CLEANER DRAIN | 1 | |
| 9 | 17245-AAL-200 | HOLDER SUB ASSY AIR/C | 1 | |
| 10 | 17253-KTP-900 | TUBE AIR/C CONN. | 1 | |
| 11 | 50731-KV3-770 | COLLAR, PILLION STEP SET | 2 | |
| 12 | 90602-KPL-900 | CLAMP, D12 TUBE | 1 | |
| 13 | 93404-06040-07 | BOLT, WASH, 6 X 40 | 2 | |
| 14 | 93500-04025-0G | SCREW, PAN, 4X25 | 1 | |
| 15 | 93903-25480 | SCREW TAPPING 5X20 | 10 | |
| 16 | 95002-02130 | CLIP B 12.5 TUBE | 1 | |
| 17 | 95018-40250 | BAND 46, AIR/C CONN. TUBE | 1 |
