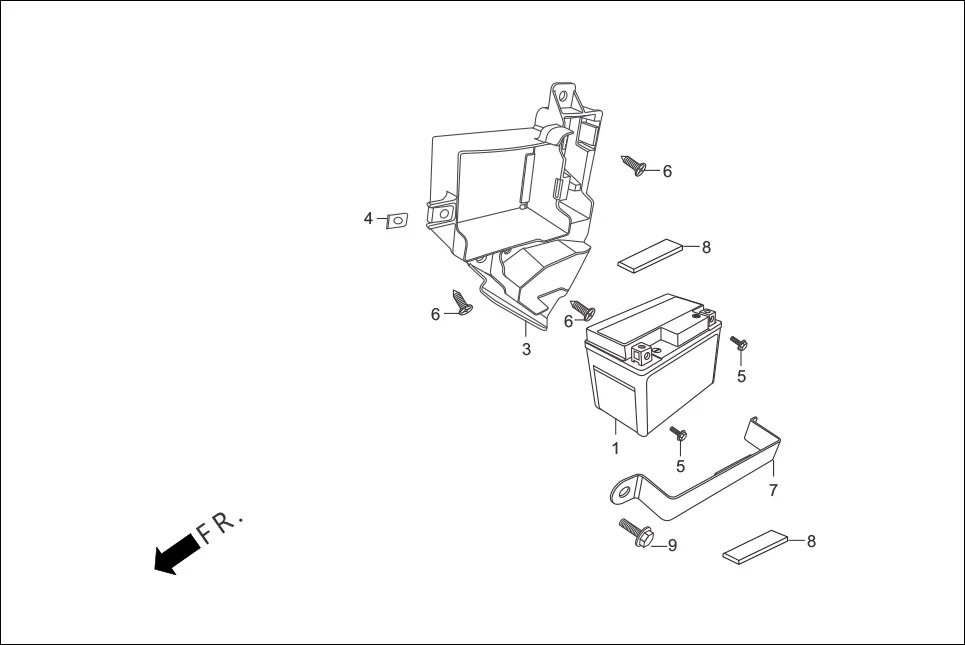

F-24A-KICK-BATTERY ASSY
HeroPassion X PRO (Sept, 2012) · 8 parts
Parts in This Assembly (8)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 31500-KWS-801 | BATTERY ASSY., MF3-BS | 1 | |
| 3 | 50325-KZA-W00 | BOX,BATTERY | 1 | |
| 4 | 90311-MT3-000 | NUT, CLIP, 6 MM | 1 | |
| 5 | 90111-187-000 | BOLT, FLANGE. 6 MM | 2 | |
| 6 | 93903-25310 | SCREW, TAPPING, 5 X 16 | 3 | |
| 7 | 50326-KZA-W00 | BAND BATTERY | 1 | |
| 8 | 77211-KVE-900 | CUSHION RR. COWL | 2 | |
| 9 | 95701-06016-00 | BOLT, FLANGE, 6X16 | 1 |
