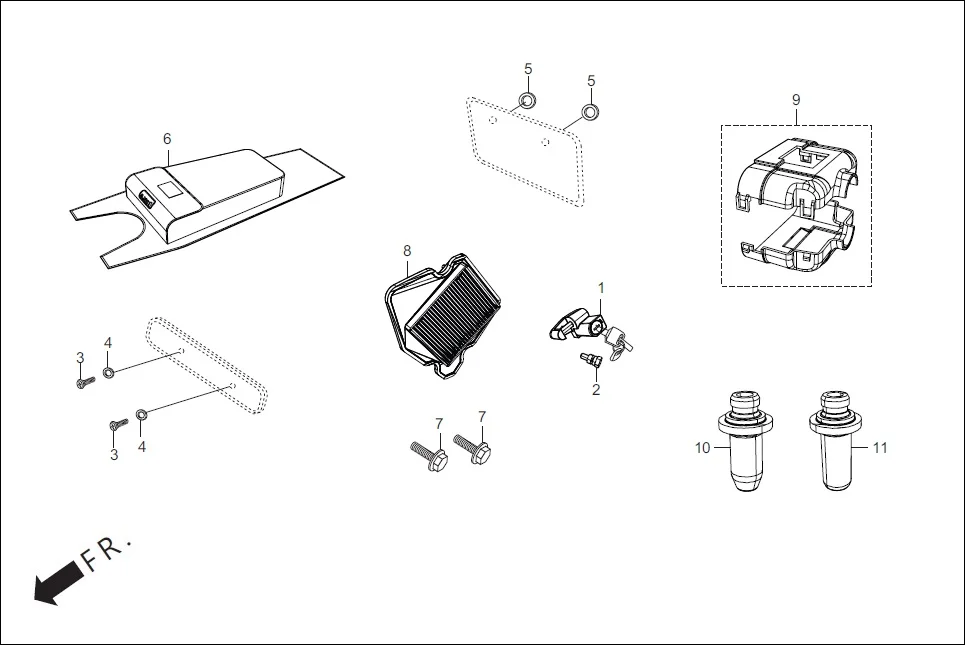

F-28A-(OPTIONAL)
HeroHF Deluxe i3S BSVI (Jan, 2020) · 11 parts
Parts in This Assembly (11)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 50720-AAD-H00 | HOLDER ASSY.HELMET | 1 | |
| 2 | 90107-428-000 | BOLT,B SPECIAL,6 MM | 1 | |
| 3 | 93500-05010-1A | SCREW, PAN, 5X10 | 2 | |
| 4 | 94101-05000 | WASHER , PLAIN, 5MM | 2 | |
| 5 | 94101-06000 | WASHER, PLAIN, 6 MM | 2 | |
| 6 | 99810-ACK-000 | COVER ASSY FUEL TANK | 1 | |
| 7 | 90083-ACK-000 | BOLT KNOCK 5MM | 2 | |
| 8 | 17208-ACK-001 | HOLDER COMP ELEMENT | 1 | |
| 9 | 32520-ACK-000 | COVER CONNECTOR ASSY | 1 | |
| 10 | 12237-ACK-305 | GUIDE INLET VALVE OVER SIZE | 1 | |
| 11 | 12245-ACK-305 | GUIDE EXHAUST VALVE OVER SIZE | 1 |
