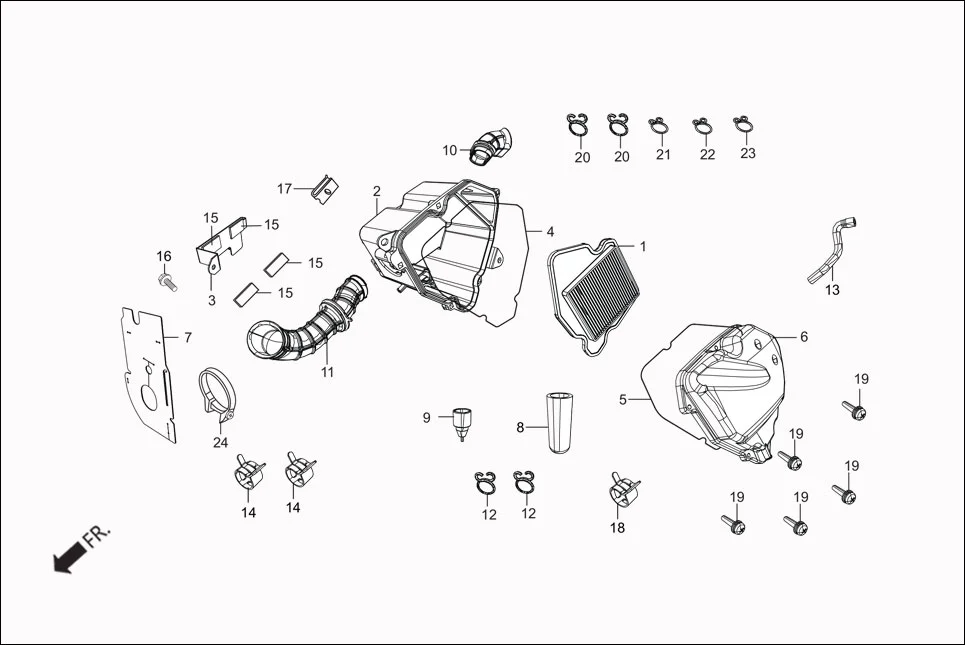

F-13-AIR CLEANER
HeroPassion Pro (Jan, 2018) · 24 parts
Parts in This Assembly (24)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17208-AAT-00099 | HOLDER COMP ELEMENT | 1 | |
| 2 | 17210-AAT-000 | CASE AIR CLEANER | 1 | |
| 3 | 17214-KWA-840 | BAND, BATTERY | 1 | |
| 4 | 17218-AAT-000 | SEAL AIR CLEANER CASE | 1 | |
| 5 | 17219-KTC-900 | SEAL, A/I CLEANER | 1 | |
| 6 | 17220-AAT-000 | COVER AIR/C CASE | 1 | |
| 7 | 17224-ABA-000 | WATER GUARD, FR | 1 | |
| 8 | 17227-ABA-000 | V.TUBE 11X15X40 | 1 | |
| 9 | 17234-KCC-940 | TUBE AIR CLEANER DRAIN | 1 | |
| 10 | 17251-AAT-000 | DUCT, AIR/C, INLET | 1 | |
| 11 | 17253-AAT-000 | TUBE, AIR/C, CONNECTOR | 1 | |
| 12 | 17316-611-000 | CLIP, BREATHER TUBE | 2 | |
| 13 | 17371-AAT-000 | TUBE, BREATHER | 1 | |
| 14 | 19509-198-770 | CLAMP D 16 TUBE | 2 | |
| 15 | 83407-KTR-940 | RUBBER, BATTERY | 4 | |
| 16 | 90101-ABA-000 | BOLT FLANGE 6X18 | 1 | |
| 17 | 90311-MT3-000 | NUT, CLIP, 6 MM | 1 | |
| 18 | 91406-KFN-850 | CLAMP, D14.5 TUBE | 1 | |
| 19 | 93893-05025-00 | SCREW WASHER 5X25 | 5 | |
| 20 | 95002-02070 | CLIP, B-7 TUBE | 2 | |
| 21 | 95002-02100 | CLIP, B-10 TUBE | 1 | |
| 22 | 95002-02130 | CLIP B 12.5 TUBE | 1 | |
| 23 | 95002-80000 | CLIP,C12 TUBE | 1 | |
| 24 | 95018-46320 | BAND 46 AIR/C CONN. TUBE | 1 |
