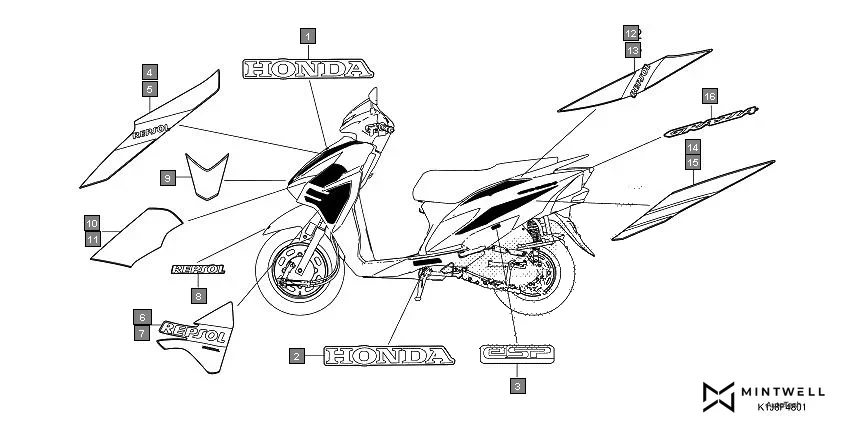

F-48-1 - MARK/STRIPE(2)
HONDA GRAZIA SCV125SN · 16 parts
Parts in This Assembly (16)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 86101-K86-D00ZA | MARK, HONDA(70MM) *TYPE1* | 1 | |
| 2 | 86103-K1J-D30ZA | MARK, HONDA(185MM) *TYPE2* | 2 | |
| 3 | 86170-K0L-D00 | MARK, ENGINE | 1 | |
| 4 | 86641-K1J-D60ZA | STRIPE A, R. SIDE UPPER COVER *TYPE1* | 1 | |
| 5 | 86642-K1J-D60ZA | STRIPE A, L. SIDE UPPER COVER *TYPE1* | 1 | |
| 6 | 86643-K1J-D60ZA | STRIPE B, R. SIDE UPPER COVER *TYPE1* | 1 | |
| 7 | 86644-K1J-D60ZA | STRIPE B, L. SIDE UPPER COVER *TYPE1* | 1 | |
| 8 | 86646-K0Y-D70ZA | STRIPE, FR. FENDER *TYPE1* | 1 | |
| 9 | 86646-K1J-D60ZA | STRIPE, FR. LOWER COVER *TYPE1* | 1 | |
| 10 | 86647-K1J-D60ZA | STRIPE C, R. COVER SIDE UPPER *TYPE1* | 1 | |
| 11 | 86648-K1J-D60ZA | STRIPE C, L. COVER SIDE UPPER *TYPE1* | 1 | |
| 12 | 86831-K1J-D60ZA | STRIPE A, R. BODY COVER *TYPE1* | 1 | |
| 13 | 86832-K1J-D60ZA | STRIPE A, L. BODY COVER *TYPE1* | 1 | |
| 14 | 86833-K1J-D60ZA | STRIPE B, R. BODY COVER *TYPE1* | 1 | |
| 15 | 86834-K1J-D60ZA | STRIPE B, L. BODY COVER *TYPE1* | 1 | |
| 16 | 86835-K1J-D60ZA | STRIPE C, BODY COVER *TYPE1* | 2 | |
