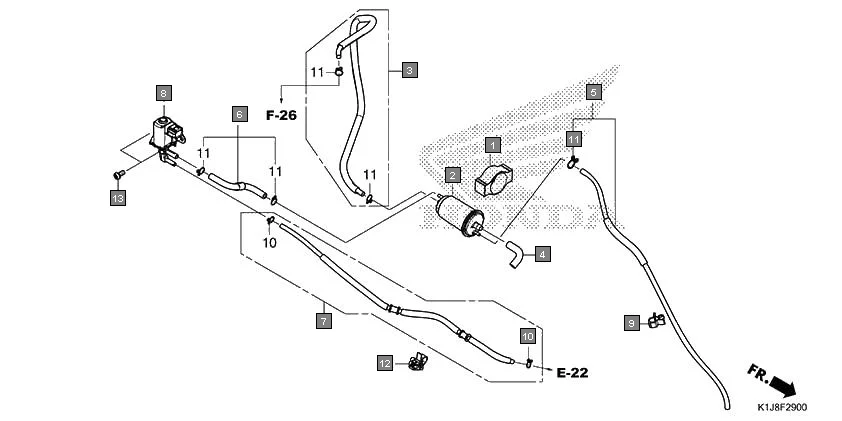

F-29 - CANISTER
HONDA GRAZIA SCV125SN · 13 parts
Parts in This Assembly (13)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17311-K0L-D60 | RUBBER, CANISTER MOUNTING | 1 | |
| 2 | 17410-K0L-D01 | CANISTER COMP. | 1 | |
| 3 | 17411-K1J-D00 | TUBE ASSY., CHARGE | 1 | |
| 4 | 17412-K0L-D00 | TUBE, AIR | 1 | |
| 5 | 17413-K0P-DA0 | TUBE ASSY., DRAIN | 1 | |
| 6 | 17414-K1J-D00 | TUBE ASSY. A, PURGE | 1 | |
| 7 | 17415-K1J-D00 | TUBE ASSY. B, PURGE | 1 | |
| 8 | 36162-K0L-D01 | VALVE, PURGE CONTROL SOLENOID (MITSUBISHI) | 1 | |
| 9 | 77243-K0L-D01 | CLIP A, SEAT LOCK CABLE | 1 | |
| 10 | 90651-KWP-F00 | CLIP, TUBE(B7) | 2 | |
| 11 | 90652-KWP-F00 | CLIP, TUBE(B8) | 5 | |
| 12 | 90651-K2C-V01 | CLIP, BAND HARNESS | 1 | |
| 13 | 93500-05010-0H | SCREW, PAN, 5X10 | 2 | |
