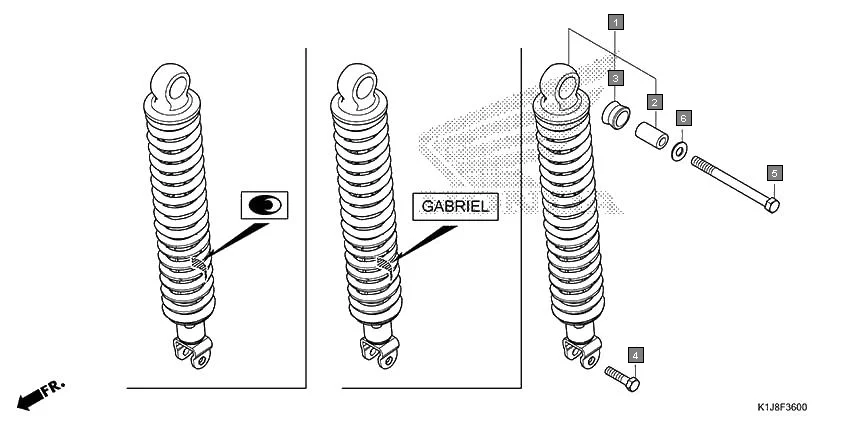

F-36 - REAR CUSHION
HONDA GRAZIA SCV125SN · 6 parts
Parts in This Assembly (6)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 52400-K1J-D32 | CUSHION ASSY., RR.(GABRIEL) | 1 | |
| 2 | 52487-KWS-901 | COLLAR, RUBBER BUSH(GABRIEL) | 1 | |
| 3 | 52489-KWS-901 | BUSH, RUBBER(GABRIEL) | 1 | |
| 4 | 92201-08032-0A | BOLT, FLANGE, 8 X32 | 1 | |
| 5 | 92201-10115-0H | BOLT, HEX., 10X115 | 1 | |
| 6 | 94101-10000 | WASHER, PLAIN, 10 MM | 1 | |
