HONDA OEM Part

83801-K1J-D00ZA

LID, FUEL *NH1* BLACK

Qty Required: 1 Ref #26 in Assembly

Part of Assembly

F-26
FUEL TANK/FUEL PUMP
37 parts in this assembly

Assembly Diagram

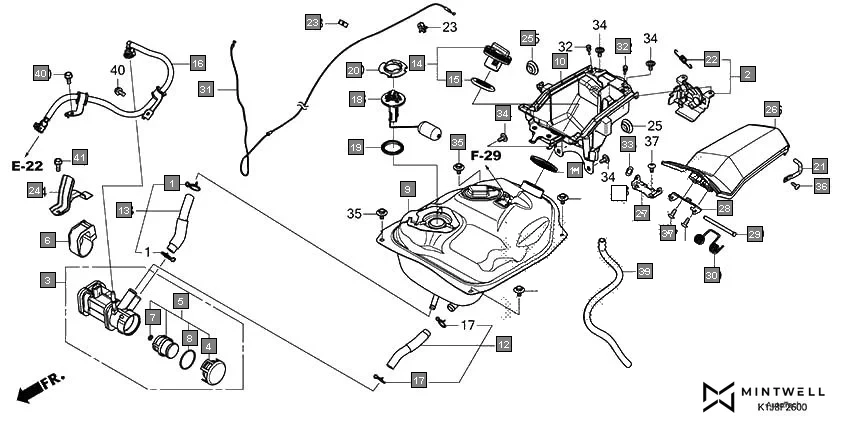

F-26 FUEL TANK/FUEL PUMP diagram showing 83801-K1J-D00ZA
Ref #26

Supported Vehicles7

HHONDA GRAZIA SCV125SL
HONDA GRAZIA SCV125SL
Current
HHONDA Dio 125 SCV125SBR
HONDA Dio 125 SCV125SBR
HHONDA Dio 125 SCV125SBT
HONDA Dio 125 SCV125SBT
HHONDA Dio 125 SCV125SR
HONDA Dio 125 SCV125SR
HHONDA Dio 125 SCV125ST
HONDA Dio 125 SCV125ST
HHONDA GRAZIA SCV125SM
HONDA GRAZIA SCV125SM
HHONDA GRAZIA SCV125SN
HONDA GRAZIA SCV125SN

Related Parts

15771-KV6-000
CLIP, OIL DRAIN TUBE
16530-K1J-DB0
CATCH COMP., FUEL LID
16700-K0P-D01
PUMP UNIT ASSY., FUEL
16703-K0L-D01
CAP, FILTER
16707-K0L-D01
FILTER SET
16711-K0L-D00
RUBBER, FUEL PUMP
View all 37 parts in this assembly
