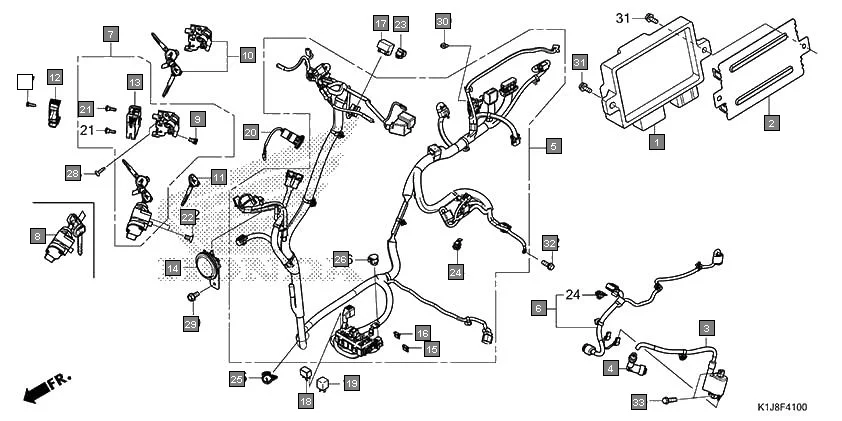

F-41 - WIRE HARNESS
HONDA GRAZIA SCV125SL · 31 parts
Parts in This Assembly (31)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 30400-K1J-D11 | CONTROL UNIT, ENGINE | 1 | |
| 1 | 30400-K1J-D01 | CONTROL UNIT, ENGINE | 1 | |
| 2 | 30401-K0L-D00 | COVER, ENGINE CONTROL UNIT | 1 | |
| 3 | 30500-K0L-D01 | COIL ASSY., IGNITION | 1 | |
| 4 | 30700-K0L-D01 | CAP ASSY., NOISE SUPPRESSOR (MINDA) | 1 | |
| 5 | 32100-K1J-D10 | HARNESS, WIRE | 1 | |
| 5 | 32100-K1J-D00 | HARNESS, WIRE | 1 | |
| 6 | 32105-K0L-D10 | SUB HARNESS, ENGINE | 1 | |
| 7 | 35010-K0L-D00 | KEY SET (MINDA) | 1 | |
| 8 | 35102-K0L-D01 | SWITCH ASSY. SET, COMBINATION & LOCK(MINDA) | 1 | |
| 9 | 35109-K86-D01 | BOLT, SOCKET, 5X8(MINDA) | 1 | |
| 10 | 35110-K0L-D01 | KEY, SHUTTER (MINDA) | 1 | |
| 11 | 35121-K86-D00 | KEY, BLANK (D0KEYTOP2REPORDER) | 1 | |
| 12 | 35191-K0L-D01 | COVER, CABLE (MINDA) | 1 | |
| 13 | 35195-K0L-D01 | SWITCH ASSY., FUEL LID & SEAT OPENER (MINDA) | 1 | |
| 14 | 38110-K0L-D01 | HORN COMP. | 1 | |
| 15 | 38221-SNA-A31 | FUSE, BLADE(7.5A) | 6 | |
| 16 | 38221-SNA-A61 | FUSE, BLADE(20A) | 1 | |
| 17 | 38301-K0P-D01 | RELAY COMP., WINKER(STAR) | 1 | |
| 18 | 38501-KVZ-631 | RELAY ASSY., POWER (MICRO ISO 4P)(MITSUBA) | 1 | |
| 19 | 38502-KWN-901 | RELAY COMP., POWER(5P) (PANASONIC) | 1 | |
| 20 | 39630-KVT-G01 | SOCKET ASSY., ACCESSORY | 1 | |
| 21 | 90101-MT4-000 | SCREW, SCREEN SETTING | 2 | |
| 22 | 90164-KPL-900 | SCREW, FLAT, U LOCK, 6X12 | 2 | |
| 23 | 91535-STK-003 | CLIP, COUPLER(DARK BLUE) | 1 | |
| 23 | 90651-K1N-V61 | CLIP, COUPLER(DARK BLUE)...... | 1 | |
| 24 | 91535-TA0-003 | CLIP, COUPLER(DARK BROWN) | 2 | |
| 25 | 91558-K0L-D01 | CLIP, WIRE HARNESS | 1 | |
| 26 | 91771-MKK-H11 | CAP, DUMMY(6P)(RED) | 1 | |
| 27 | 93901-24320 | SCREW, TAPPING, 4X12 | 1 | |
| 28 | 93903-34420 | SCREW TAPPING 4X16 | 1 | |
