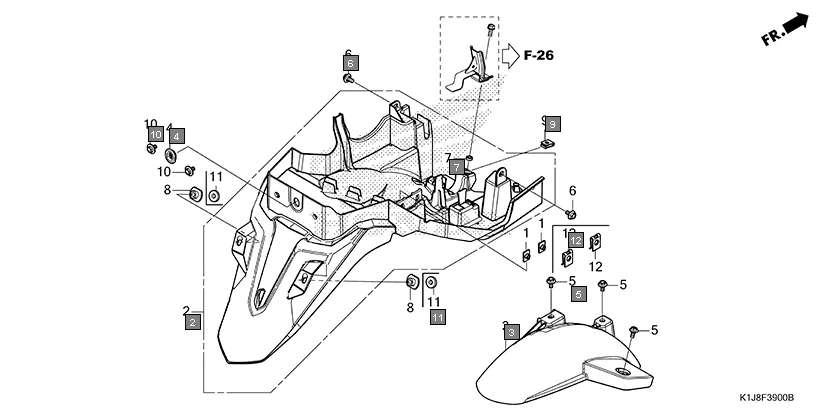

F-39 - REAR FENDER
HONDA GRAZIA SCV125SL · 5 parts
Parts in This Assembly (5)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 2 | 80105-K1J-DB0 | FENDER COMP., RR. | 1 | |
| 3 | 80107-K1J-D00 | FENDER, RR. INNER | 1 | |
| 5 | 90111-187-000 | BOLT, FLANGE. 6 MM | 3 | |
| 6 | 90111-KWP-900 | BOLT, INNER COVER | 2 | |
| 11 | 90501-K0Y-D00 | WASHER, PLAIN, 5MM | 2 | |
