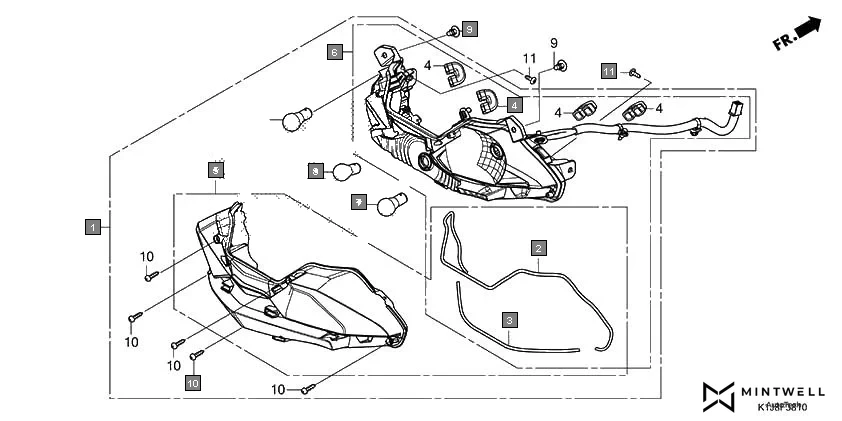

F-38-10 - REAR COMBINATION LIGHT
HONDA GRAZIA SCV125SL · 11 parts
Parts in This Assembly (11)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33700-K1J-DB1 | LIGHT ASSY., RR. COMBINATION | 1 | |
| 2 | 33701-K1J-D01 | PACKING A, SEAL | 1 | |
| 3 | 33702-K1J-D01 | PACKING B, SEAL | 1 | |
| 4 | 33706-KWS-901 | TUBE | 4 | |
| 5 | 33710-K1J-D01 | LENS COMP. | 1 | |
| 6 | 33715-K1J-DB1 | BASE COMP. | 1 | |
| 7 | 34930-KWA-930 | BULB, WINKER(12V 10W)(AMBER) | 2 | |
| 8 | 34906-KRB-900 | BULB, TAILLIGHT(12V 21/5W) | 1 | |
| 8 | 34907-KVN-901 | BLUB, TAIL & STOP LIGHT | 1 | |
| 10 | 93901-24420 | SCREW, TAPPING, 4X16 | 5 | |
| 11 | 93903-25320 | SCREW, TAPPING, 5 X 16 | 2 | |
