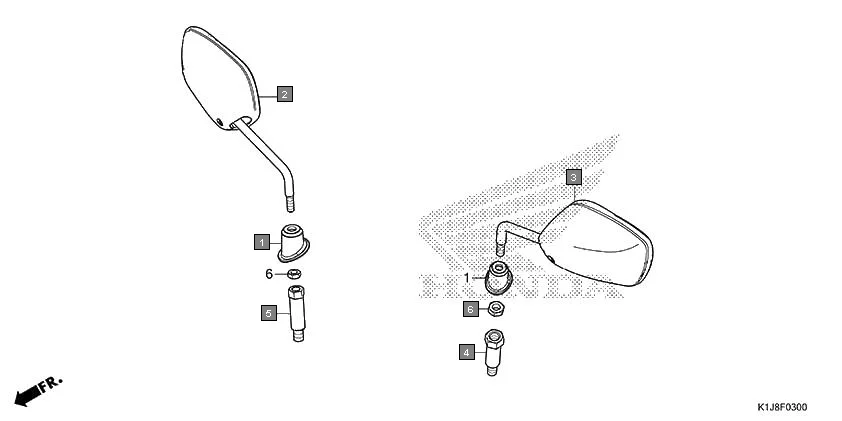

F-3 - MIRROR
HONDA GRAZIA SCV125SL · 7 parts
Parts in This Assembly (7)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 88113-K1J-D00 | CAP, MIRROR LOCK NUT | 2 | |
| 2 | 88210-K1J-D11ZA | MIRROR COMP., R. *NH1* BLACK | 1 | |
| 2 | 88210-K1J-D01ZA | MIRROR COMP., R. *NH1* BLACK | 1 | |
| 3 | 88220-K1J-D01ZA | MIRROR COMP., L. *NH1* BLACK | 1 | |
| 4 | 90102-KWP-H00 | BOLT, ADAPTER, 8MM | 1 | |
| 5 | 90103-K1J-D10 | BOLT, ADAPTER, 10MM | 1 | |
| 6 | 90201-KV3-680 | NUT, HEX., 8MM(L.H.) | 2 | |
