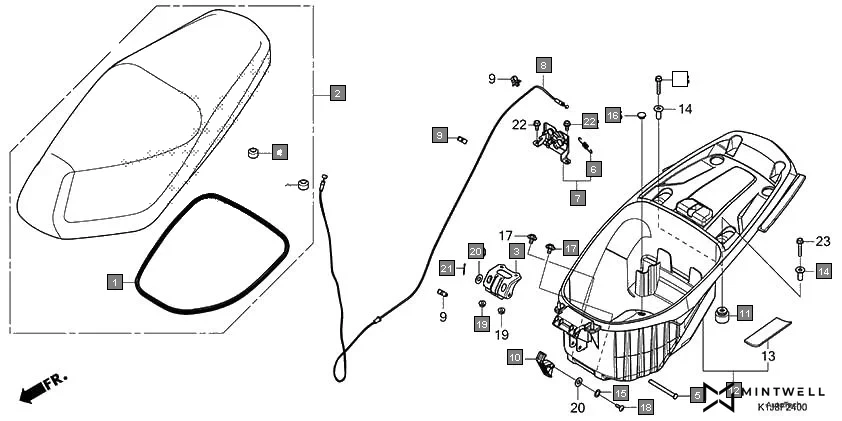

F-24 - SEAT/LUGGAGE BOX
HONDA GRAZIA SCV125SL · 16 parts
Parts in This Assembly (16)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 77115-K1J-D00 | RUBBER, SEAL | 1 | |
| 2 | 77200-K1J-DB1 | SEAT COMP., DOUBLE | 1 | |
| 3 | 77201-K0L-D00 | HINGE, SEAT | 1 | |
| 4 | 77206-KG8-900 | RUBBER, SEAT SETTING | 2 | |
| 5 | 77215-K24-900 | PIN, SEAT HINGE | 1 | |
| 7 | 77235-K1J-D00 | CATCH COMP., SEAT | 1 | |
| 8 | 77240-K0Y-DH1 | CABLE COMP., SEAT LOCK | 1 | |
| 10 | 80155-K1J-D00ZA | HOOK, LUGGAGE *NH1* BLACK | 1 | |
| 11 | 81253-KPH-900 | RUBBER, LUGGAGE BOX MOUNTING | 2 | |
| 12 | 81260-K1J-DB0 | BOX ASSY., LUGGAGE | 1 | |
| 14 | 90502-K1J-D00 | COLLAR, 6.2X21 | 2 | |
| 16 | 90656-GCC-000ZC | PLUG, HOLE *NH1* BLACK | 1 | |
| 20 | 94101-08000 | WASHER, PLAIN, 8MM | 2 | |
| 21 | 94201-16180 | PIN, SPLIT, 1.6X18 | 1 | |
| 22 | 95701-06012-08 | BOLT, FLANGE, 6X12 | 2 | |
| 23 | 95701-06032-08 | BOLT, FLANGE, 6X32 | 2 | |
