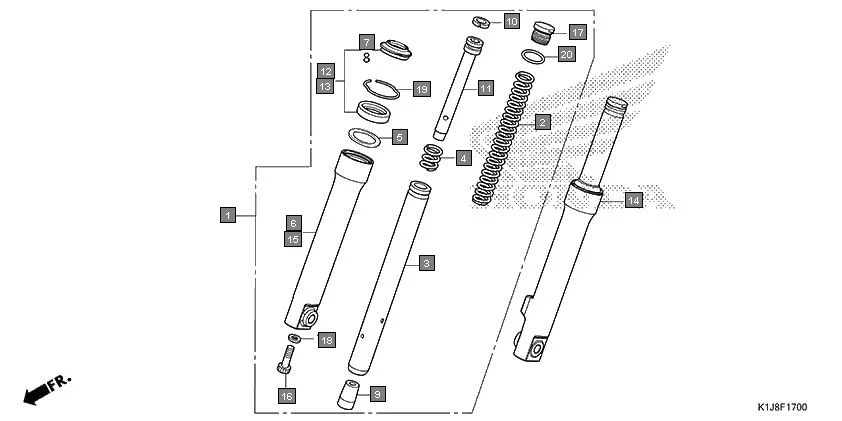

F-17 - FRONT FORK
HONDA GRAZIA SCV125SL · 22 parts
Parts in This Assembly (22)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 51400-K0Y-D02 | FORK ASSY., R. FR.(ENDURANCE) | 1 | |
| 1 | 51400-K1J-D11 | FORK ASSY., R. FR.(ENDURANCE) | 1 | |
| 2 | 51401-K86-D01 | SPRING, FR. FORK(ENDURANCE) | 2 | |
| 3 | 51410-K86-D01 | PIPE COMP., FR. FORK (ENDURANCE) | 2 | |
| 4 | 51412-K86-D01 | SPRING, REBOUND(ENDURANCE) | 2 | |
| 5 | 51413-K23-902 | RING, BACK UP | 2 | |
| 6 | 51420-K0Y-D02 | CASE, R. FR. BOTTOM(ENDURANCE) | 1 | |
| 6 | 51420-K1J-D11 | CASE, R. FR. BOTTOM(ENDURANCE) | 1 | |
| 7 | 51425-KTE-D81 | SEAL, DUST(ETPL) | 1 | |
| 9 | 51432-K0E-D01 | PIECE, OIL LOCK | 2 | |
| 10 | 51437-K23-902 | RING, PISTON | 2 | |
| 11 | 51440-K86-D01 | PIPE, SEAT(ENDURANCE) | 2 | |
| 12 | 51490-KTE-D81 | SEAL SET, FR. FORK(ENDURANCE) | 1 | |
| 14 | 51500-K0Y-D02 | FORK ASSY., L. FR.(ENDURANCE) | 1 | |
| 14 | 51500-K1J-D11 | FORK ASSY., L. FR.(ENDURANCE) | 1 | |
| 15 | 51520-K1J-D11 | CASE, L. FR. BOTTOM(ENDURANCE) | 1 | |
| 15 | 51520-K0Y-D02 | CASE, L. FR. BOTTOM(ENDURANCE) | 1 | |
| 16 | 90116-K23-902 | BOLT, SOCKET, 8MM | 2 | |
| 17 | 90123-K86-D01 | BOLT A, FR. FORK | 2 | |
| 18 | 90544-K23-902 | WASHER, SPECIAL, 8MM | 2 | |
| 19 | 90651-K23-902 | RING, OIL SEAL STOP | 2 | |
| 20 | 91351-K23-902 | O-RING | 2 | |
