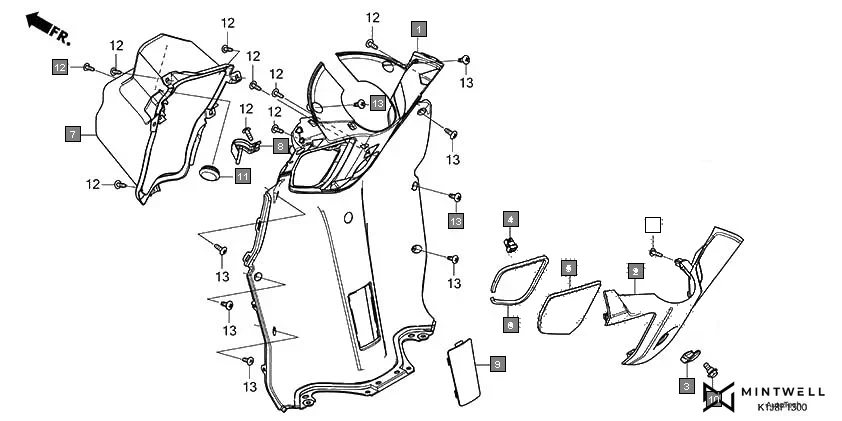

F-13 - INNER COVER
HONDA GRAZIA SCV125SL · 18 parts
Parts in This Assembly (18)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 81131-K1J-D00ZA | COVER, INNER *NH1* BLACK | 1 | |
| 2 | 81132-K1J-D00ZE | COVER, INNER UPPER *PB123PA* PEARL SIREN BLUE-A | 1 | |
| 2 | 81132-K1J-D00ZF | COVER, INNER UPPER *NH303M* MAT AXIS GRAY METALLIC | 1 | |
| 2 | 81132-K1J-D00ZM | COVER, INNER UPPER *R392P* PEARL SPARTAN RED 2 | 1 | |
| 2 | 81132-K1J-D00ZQ | COVER, INNER UPPER *Y239* MAT CYBER YELLOW | 1 | |
| 3 | 81132-KWP-H00ZA | HOOK, LUGGAGE *NH1* BLACK | 1 | |
| 4 | 81133-K1J-D01 | LATCH, INNER BOX | 1 | |
| 5 | 81134-K1J-D00ZE | LID, INNER BOX *PB123PA* PEARL SIREN BLUE-A | 1 | |
| 5 | 81134-K1J-D00ZF | LID, INNER BOX *NH303M* MAT AXIS GRAY METALLIC | 1 | |
| 5 | 81134-K1J-D00ZM | LID, INNER BOX *R392P* PEARL SPARTAN RED 2 | 1 | |
| 5 | 81134-K1J-D00ZQ | LID, INNER BOX *Y239* MAT CYBER YELLOW | 1 | |
| 6 | 81135-K1J-D00 | SEAL, INNER BOX LID | 1 | |
| 7 | 81137-K1J-D00 | BOX, L. INNER | 1 | |
| 8 | 81143-K1J-D00 | HINGE, INNER BOX | 1 | |
| 9 | 81252-K1J-D00ZA | COVER, FRAME NUMBER *NH1* BLACK | 1 | |
| 10 | 90107-KVB-900 | BOLT, SPECIAL, 6MM | 1 | |
| 11 | 90862-KWP-G00 | PLUG, END | 1 | |
| 14 | 93903-34480 | SCREW, TAPPING, 4X 16 | 1 | |
