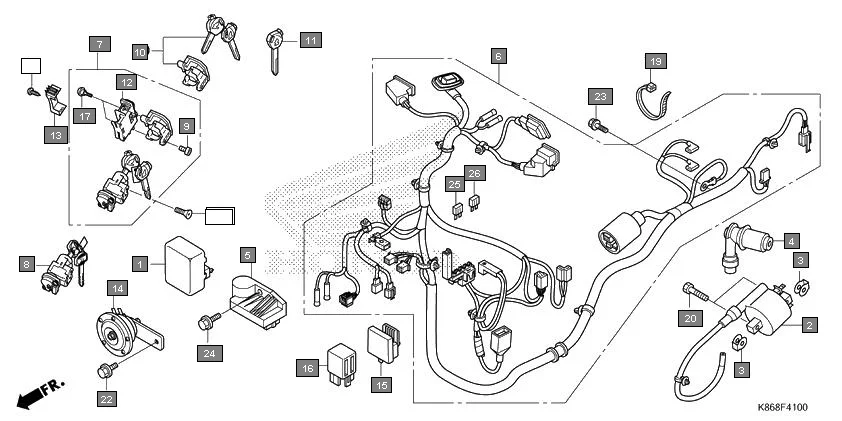

F-41 - WIRE HARNESS
HONDA GRAZIA SCV125SK · 25 parts
Parts in This Assembly (25)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 30410-K86-D01 | SPARK UNIT COMP.(DENSO) | 1 | |
| 2 | 30500-KWP-D01 | COIL ASSY., IGNITION(WINGS) | 1 | |
| 3 | 30520-GFM-900 | SPACER, IGNITION COIL | 2 | |
| 4 | 30700-K24-921 | CAP ASSY., NOISE SUPPRESSOR | 1 | |
| 5 | 31600-K86-D01 | RECTIFIER COMP., REGULATE (SHINDENGEN) | 1 | |
| 6 | 32100-K86-D01 | HARNESS, WIRE | 1 | |
| 7 | 35010-K86-D00 | KEY SET | 1 | |
| 8 | 35102-K86-D01 | SWITCH ASSY., COMBINATION & LOCK | 1 | |
| 9 | 35109-K86-D01 | BOLT, SOCKET, 5X8(MINDA) | 1 | |
| 10 | 35110-K86-D01 | KEY, SHUTTER(MINDA) | 1 | |
| 11 | 35121-K86-D00 | KEY, BLANK (D0KEYTOP2REPORDER) | 1 | |
| 12 | 35190-K86-D01 | SWITCH ASSY., SEAT OPENER | 1 | |
| 13 | 35191-K86-D01 | COVER, CABLE | 1 | |
| 14 | 38110-K86-D01 | HORN COMP.(BLOWELL) | 1 | |
| 15 | 38301-KVT-G01 | RELAY COMP., WINKER | 1 | |
| 16 | 38501-KPL-901 | RELAY COMP., STARTER(MULTILINK) | 1 | |
| 17 | 90101-MT4-000 | SCREW, SCREEN SETTING | 2 | |
| 18 | 90164-KEE-630 | SCREW FLAT 6X12 | 2 | |
| 18 | 90164-KPL-900 | SCREW, FLAT, U LOCK, 6X12 | 2 | |
| 19 | 90657-KRP-901 | CABLE, TIE(LONG) | 1 | |
| 20 | 92101-06020-4J | BOLT, HEX., 6 X 20 | 2 | |
| 21 | 93901-24320 | SCREW, TAPPING, 4X12 | 1 | |
| 22 | 95701-06010-00 | BOLT, FLANGE, 6 X 10 | 1 | |
| 25 | 98200-31000 | BLADE, FUSE 10A | 2 | |
| 26 | 98200-31500 | BLADE, FUSE, 15A | 2 | |
