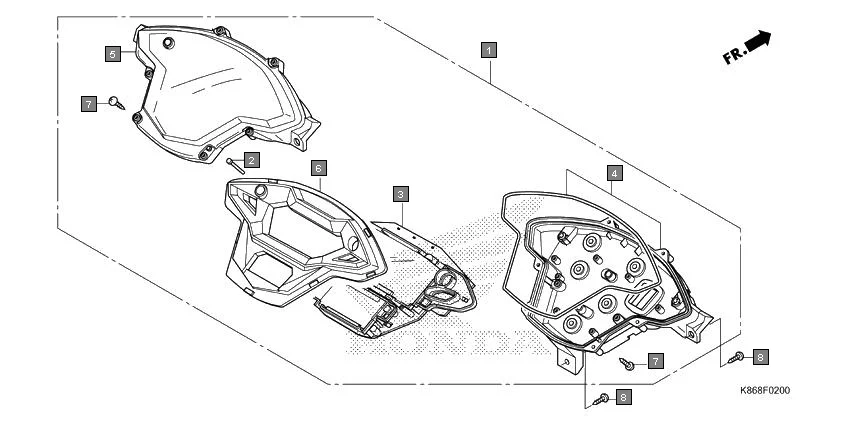

F-2 - METER
HONDA GRAZIA SCV125SK · 7 parts
Parts in This Assembly (7)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 37100-K86-D01 | METER ASSY., COMBINATION (NIPPON SEIKI) | 1 | |
| 2 | 37113-K86-D01 | KEY, TOP | 1 | |
| 3 | 37130-K86-D01 | METER COMP., LCD(KPH) (NIPPON SEIKI) | 1 | |
| 4 | 37212-K86-D01 | CASE ASSY., UNDER (NIPPON SEIKI) | 1 | |
| 5 | 37213-K86-D01 | LENS ASSY.(NIPPON SEIKI) | 1 | |
| 6 | 37302-K86-D01 | REFLECTOR ASSY.(NIPPON SEIKI) | 1 | |
| 7 | 93903-22480 | SCREW TAPPING 3 X 16 | 12 | |
