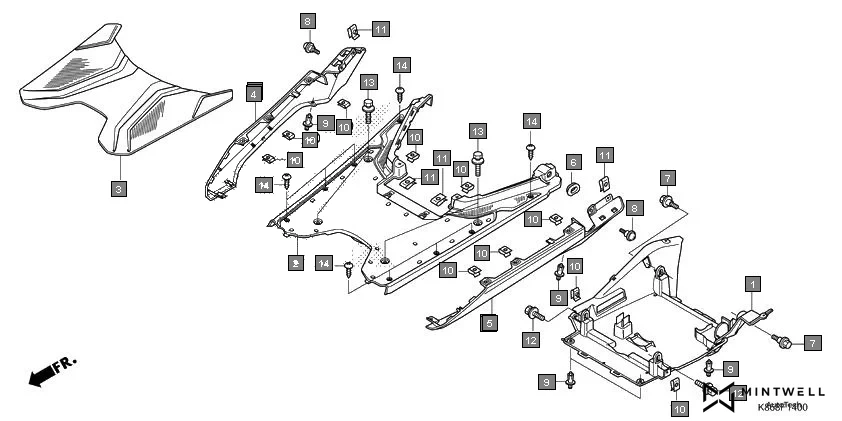

F-14 - UNDER COVER/FLOOR STEP
HONDA GRAZIA SCV125SK · 17 parts
Parts in This Assembly (17)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 50621-K86-D00ZA | COVER, UNDER BLACK *NH1* | 1 | |
| 2 | 64310-K86-D00ZA | STEP, FLOOR BLACK *NH1* | 1 | |
| 3 | 64315-K86-D00 | MAT, FLOOR | 1 | |
| 4 | 64325-K86-D00ZA | COVER SET, R. FLOOR SIDE(WL) *TYPE6* | 1 | |
| 4 | 64325-K86-D00ZB | COVER SET, R. FLOOR SIDE(WL) *TYPE5* | 1 | |
| 4 | 64325-K86-D00ZC | COVER SET, R. FLOOR SIDE(WL) *TYPE4* | 1 | |
| 4 | 64325-K86-D00ZD | COVER SET, R. FLOOR SIDE(WL) *TYPE3* | 1 | |
| 4 | 64325-K86-D00ZE | COVER SET, R. FLOOR SIDE(WL) *TYPE2* | 1 | |
| 4 | 64325-K86-D00ZF | COVER SET, R. FLOOR SIDE(WL) *TYPE1* | 1 | |
| 5 | 64335-K86-D00ZA | COVER SET, L. FLOOR SIDE(WL) *TYPE6* | 1 | |
| 5 | 64335-K86-D00ZB | COVER SET, L. FLOOR SIDE(WL) *TYPE5* | 1 | |
| 5 | 64335-K86-D00ZC | COVER SET, L. FLOOR SIDE(WL) *TYPE4* | 1 | |
| 5 | 64335-K86-D00ZD | COVER SET, L. FLOOR SIDE(WL) *TYPE3* | 1 | |
| 5 | 64335-K86-D00ZE | COVER SET, L. FLOOR SIDE(WL) *TYPE2* | 1 | |
| 5 | 64335-K86-D00ZF | COVER SET, L. FLOOR SIDE(WL) *TYPE1* | 1 | |
| 7 | 90111-162-000 | BOLT, FLANGE, 6MM | 2 | |
| 13 | 93404-06020-08 | BOLT-WASHER, 6X20 | 4 | |
